T38020-12-0
ActiveCurtis Industries

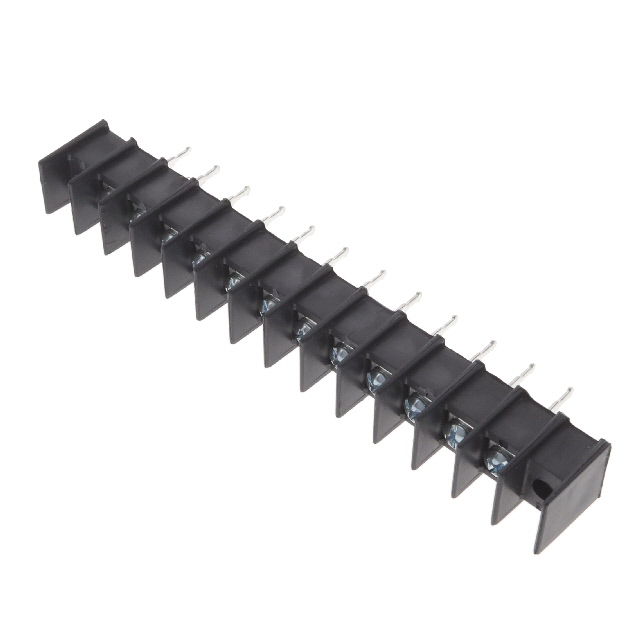

CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38020-12-0
ActiveCurtis Industries
CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T38020-12-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Solder Turret |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 12 |
| Number of Rows | 1 |
| Number of Wire Entries | 12 |
| Operating Temperature | 105 C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
T38020 Series
| Part | Material Flammability Rating | Terminal Block Type | Wire Gauge [Min] | Wire Gauge [Max] | Material - Insulation | Terminal Screw Finish | Current Rating (Amps) | Bottom Termination | Top Termination | Features | Number of Wire Entries | Number of Circuits | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Terminal Screw Material | Operating Temperature | Barrier Type | Voltage Rating | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 13 | 13 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 23 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 23 | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 1 | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 1 | ||||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 19 | 19 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 9 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | |||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 21 | 21 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 8 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 8 | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 12 | 12 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 11 | 11 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 26 | 26 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.38 | |
| 10 | $ 8.04 | |||
| 25 | $ 7.67 | |||
| 50 | $ 6.90 | |||
| 100 | $ 6.53 | |||
| 250 | $ 5.92 | |||
| 500 | $ 5.51 | |||
| 1000 | $ 5.20 | |||
Description
General part information
T38020 Series
12 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
No documents available
