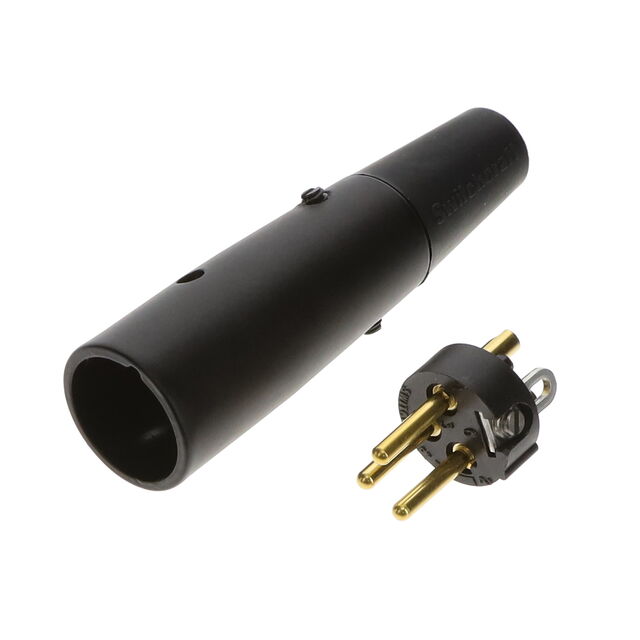

A3MBAU
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3MBAU
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3MBAU |
|---|---|
| Applications | Audio, Instrumentation |
| Backshell Material, Plating | Zinc, Black Finish |
| Cable Opening [Max] [diameter] | 0.3 in |
| Cable Opening [Max] [diameter] | 7.62 mm |
| Cable Opening [Min] [diameter] | 5.33 mm |
| Cable Opening [Min] [diameter] | 0.21 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 15 A |
| Fastening Type | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp |
| Insert Material | Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Zinc |
| Shell Size - Insert | XLR |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.33 | |
| 10 | $ 11.82 | |||
| 25 | $ 11.36 | |||
| 50 | $ 10.91 | |||
| 100 | $ 10.30 | |||
| 300 | $ 9.39 | |||
| 500 | $ 8.79 | |||
| 1000 | $ 8.06 | |||
Description
General part information
A3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
