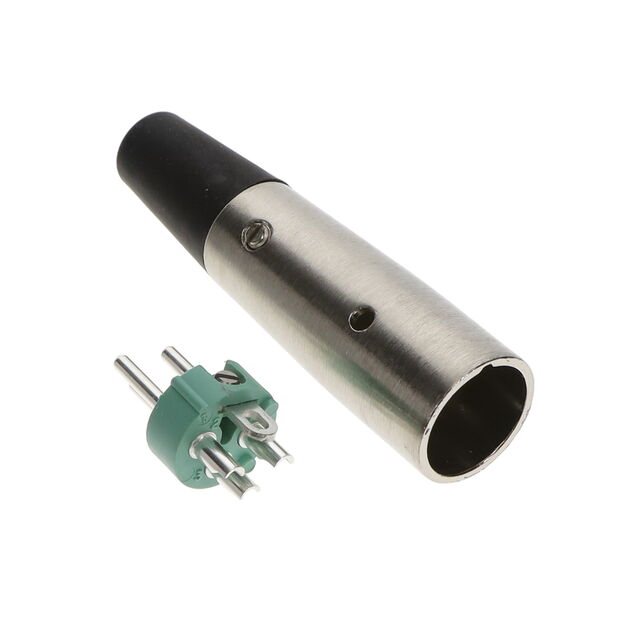

A3MS
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3MS
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3MS |
|---|---|
| Applications | Audio, Instrumentation |
| Backshell Material, Plating | Zinc, Nickel |
| Cable Opening [custom] | 5.21 mm, 2.67 mm |
| Cable Opening [custom] | 0.205 in, 0.105 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Brass |
| Current Rating (Amps) | 15 A |
| Fastening Type | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp |
| Insert Material | Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc |
| Shell Size - Insert | XLR |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.33 | |
| 10 | $ 9.47 | |||
| 25 | $ 8.56 | |||
| 50 | $ 7.94 | |||
| 100 | $ 7.38 | |||
| 300 | $ 6.60 | |||
| 500 | $ 6.28 | |||
| 1000 | $ 5.87 | |||
Description
General part information
A3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
