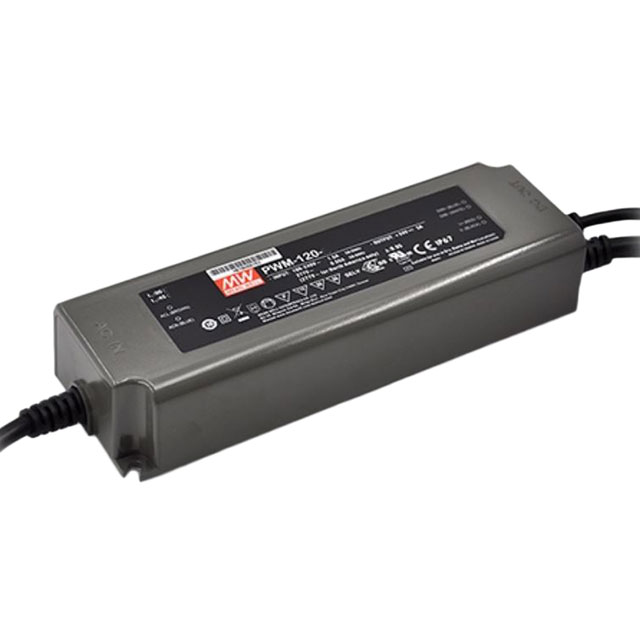

PWM-120-24DA

Active

MEAN WELL USA Inc.

LED DRIVERS POWER SUPPLIES 120W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVERS POWER SUPPLIES 120W

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Efficiency	Termination Style	Topology	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output	Features	Approval Agency	Voltage - Isolation	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Dimming
MEAN WELL USA Inc. PWM-120-24DA	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	24 V	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	5 A
MEAN WELL USA Inc. PWM-120-12DA	IP67	88 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	12 V	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	10 A
MEAN WELL USA Inc. PWM-120-36	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	36 V	OCP OTP OVP SCP	CB CCC CE cURus ENEC	3750 V	122 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	3.4 A	Analog PWM
MEAN WELL USA Inc. PWM-120-24	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	24 V	OCP OTP OVP SCP	CB CCC CE cURus ENEC	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	5 A	Analog PWM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available
