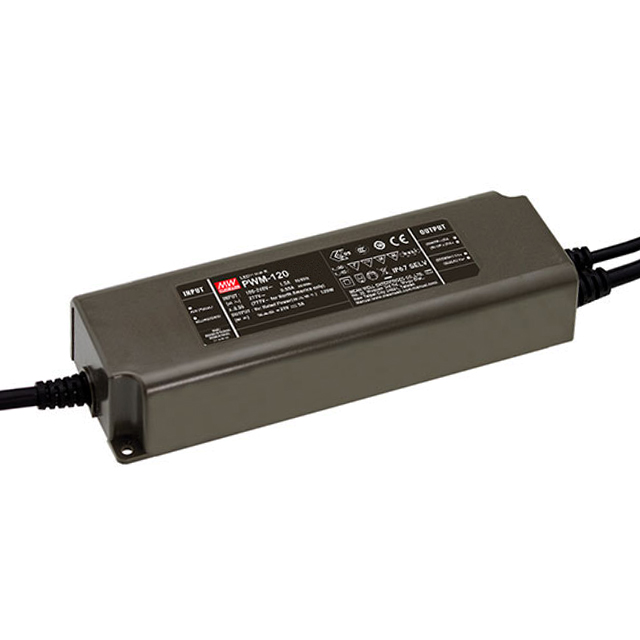

PWM-120-36

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 36V 3.4A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 36V 3.4A

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Efficiency	Termination Style	Topology	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output	Features	Approval Agency	Voltage - Isolation	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Dimming
MEAN WELL USA Inc. PWM-120-24DA	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	24 V	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	5 A
MEAN WELL USA Inc. PWM-120-12DA	IP67	88 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	12 V	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	10 A
MEAN WELL USA Inc. PWM-120-36	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	36 V	OCP OTP OVP SCP	CB CCC CE cURus ENEC	3750 V	122 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	3.4 A	Analog PWM
MEAN WELL USA Inc. PWM-120-24	IP67	90 %	Wire Leads	AC DC Converter	305 VAC	Chassis Mount	Constant Voltage	24 V	OCP OTP OVP SCP	CB CCC CE cURus ENEC	3750 V	120 W	90 °C	-40 °C	1	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	90 VAC	5 A	Analog PWM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	15	$ 42.79

General part information

3.4A 36V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available
