1563 BK005

Active

ALPHA WIRE

HOOK-UP SOLID 20AWG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1563 BK005

Active

ALPHA WIRE

HOOK-UP SOLID 20AWG BLACK

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1563 BK005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	1.63 mm
Jacket (Insulation) Diameter [diameter]	0.064 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	20 AWG

1563 Series

Part	Conductor Material	Voltage	Wire Gauge	Qualification	Jacket (Insulation) Material	Length	Length	Jacket Color	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 1563 BL001	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Blue	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in
ALPHA WIRE 1563 SL001	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Slate	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in
ALPHA WIRE 1563 BR001	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Brown	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in
ALPHA WIRE 1563 RD005	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)			Red	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in	30.5 m	100 ft
ALPHA WIRE 1563 BK005	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)			Black	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in	30.5 m	100 ft
ALPHA WIRE 1563 OR005	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)			Orange	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in	30.5 m	100 ft
ALPHA WIRE 1563 YL005	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)			Yellow	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in	30.5 m	100 ft
ALPHA WIRE 1563 BL005	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)			Blue	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in	30.5 m	100 ft
ALPHA WIRE 1563 OR001	Copper Tinned	1000 V	20 AWG	MIL-W-76B Type MW	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Orange	Solid	-40 °C	80 C	0.016 in	0.41 mm	Hook-Up	1.63 mm	0.064 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 0.41
		300	$ 0.36

Description

General part information

1563 Series

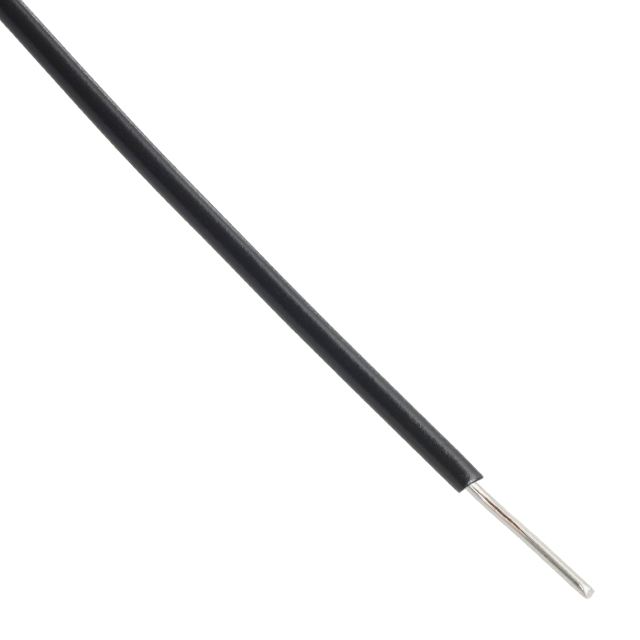

20 AWG Hook-Up Wire Solid Black 1000V 100.0' (30.5m)
