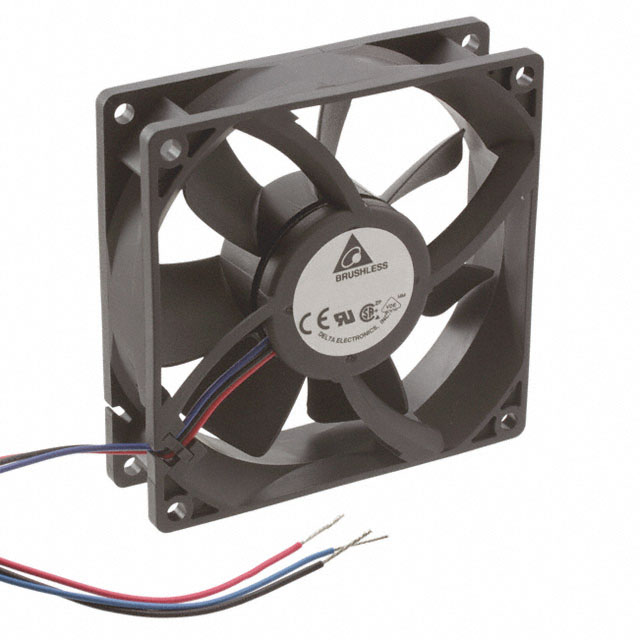

AFB0924SH-AF00

Active

Delta Electronics

FAN AXIAL 92X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

AFB0924SH-AF00

Active

Delta Electronics

FAN AXIAL 92X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0924SH-AF00

Air Flow	102.6 CFM
Air Flow	2.87 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9.6 W
RPM	4800 RPM
Static Pressure	131 Pa
Static Pressure	0.526 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	121.11 g
Weight	0.267 lb
Width [y]	25.4 mm

AFB0924 Series

Part	Width [y]	Lifetime @ Temp.	Voltage - Rated	Material - Frame	RPM	Approval Agency	Noise	Material - Blade	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Features	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Power (Watts)	Bearing Type	Fan Type	Termination	Weight	Weight	Air Flow
Delta Electronics AFB0924VH-F00	25.4 mm	70000 Hrs	24 VDC	Plastic	3800 RPM	CE CSA UL VDE	45 dB(A)	Plastic	67.8 CFM	1.9 m³/min	70 °C	70 °C	-10 °C	-10 °C	75.2 Pa	0.302 in H2O	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	14 VDC	0.22 A	5.28 W	Ball	Tubeaxial	3 Wire Leads	0.218 lb	98.88 g
Delta Electronics AFB0924VH	25.4 mm	70000 Hrs	24 VDC	Plastic	3800 RPM	CE CSA UL VDE	45 dB(A)	Plastic	67.8 CFM	1.9 m³/min	70 °C	70 °C	-10 °C	-10 °C	75.2 Pa	0.302 in H2O		27.6 VDC	14 VDC	0.22 A	5.28 W	Ball	Tubeaxial	2 Wire Leads	0.218 lb	98.88 g
Delta Electronics AFB0924H-R00	25.4 mm	70000 Hrs	24 VDC	Plastic	2850 RPM	CE CSA UL VDE	34 dB(A)	Plastic		51.2 CFM	70 °C	70 °C	-10 °C	-10 °C	44.1 Pa	0.177 in H2O	Locked Rotor Sensor	27.6 VDC	14 VDC	100 mA	2.4 W	Ball	Tubeaxial	3 Wire Leads	0.219 lb	99.34 g	1.43 m³/min
Delta Electronics AFB0924H-F00	25.4 mm	70000 Hrs	24 VDC	Plastic	2850 RPM	CE CSA UL VDE	34 dB(A)	Plastic		51.2 CFM	70 °C	70 °C	-10 °C	-10 °C	44.1 Pa	0.177 in H2O	Locked Rotor Protection Speed Sensor (Tach)	27.6 VDC	14 VDC	100 mA	2.4 W	Ball	Tubeaxial	3 Wire Leads	0.219 lb	99.34 g	1.43 m³/min
Delta Electronics AFB0924M	25.4 mm	70000 Hrs	24 VDC	Plastic	2450 RPM	CE CSA UL VDE	30 dB(A)	Plastic	43.8 CFM	1.23 m³/min	70 °C	70 °C	-10 °C	-10 °C	32.4 Pa	0.13 in H2O		27.6 VDC	14 VDC		1.92 W	Ball	Tubeaxial	2 Wire Leads	0.219 lb	99.34 g
Delta Electronics AFB0924VH-A	25.4 mm	70000 Hrs	24 VDC	Plastic	3800 RPM	CE CSA UL VDE	46 dB(A)	Plastic	81.5 CFM	2.28 m³/min	70 °C	70 °C	-10 °C	-10 °C	85.9 Pa	0.345 in H2O		26.4 VDC	14 VDC	0.25 A	6 W	Ball	Tubeaxial	2 Wire Leads	0.267 lb	121.11 g
Delta Electronics AFB0924HH	25.4 mm	70000 Hrs	24 VDC	Plastic	3200 RPM	CE CSA UL VDE	38 dB(A)	Plastic	57.9 CFM	1.62 mł/min	70 °C	70 °C	-10 °C	-10 °C	55 Pa	0.221 in H2O		27.6 VDC	14 VDC		3.12 W	Ball	Tubeaxial	2 Wire Leads	0.218 lb	98.88 g
Delta Electronics AFB0924SH-AF00	25.4 mm	70000 Hrs	24 VDC	Plastic	4800 RPM	CE CSA UL VDE	53 dB	Plastic	102.6 CFM	2.87 m³/min	70 °C	70 °C	-10 °C	-10 °C	131 Pa	0.526 in H2O	Locked Rotor Protection Speed Sensor (Tach)	26.4 VDC	14 VDC	400 mA	9.6 W	Ball	Tubeaxial	3 Wire Leads	0.267 lb	121.11 g
Delta Electronics AFB0924HD	20 mm	70000 Hrs	24 VDC	Plastic	2700 RPM	CE CSA UL VDE	35 dB	Plastic	54.6 CFM	1.53 mł/min	70 °C	70 °C	-10 °C	-10 °C	34.3 Pa	0.138 in H2O		27.6 VDC	14 VDC	100 mA	2.4 W	Ball	Tubeaxial	2 Wire Leads	0.203 lb	92.08 g
Delta Electronics AFB0924L-R00	25.4 mm	70000 Hrs	24 VDC	Plastic	2100 RPM	CE CSA UL VDE	25 dB(A)	Plastic	37.1 CFM	1.04 mł/min	70 °C	70 °C	-10 °C	-10 °C	24.9 Pa	0.1 in H2O	Locked Rotor Sensor	27.6 VDC	14 VDC	60 mA	1.44 W	Ball	Tubeaxial	3 Wire Leads	0.219 lb	99.34 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.44
		10	$ 18.56
		25	$ 16.79
		72	$ 15.47
		144	$ 13.87
		288	$ 12.81
		504	$ 11.93

Description

General part information

AFB0924 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 102.6 CFM (2.87m³/min) 3 Wire Leads
