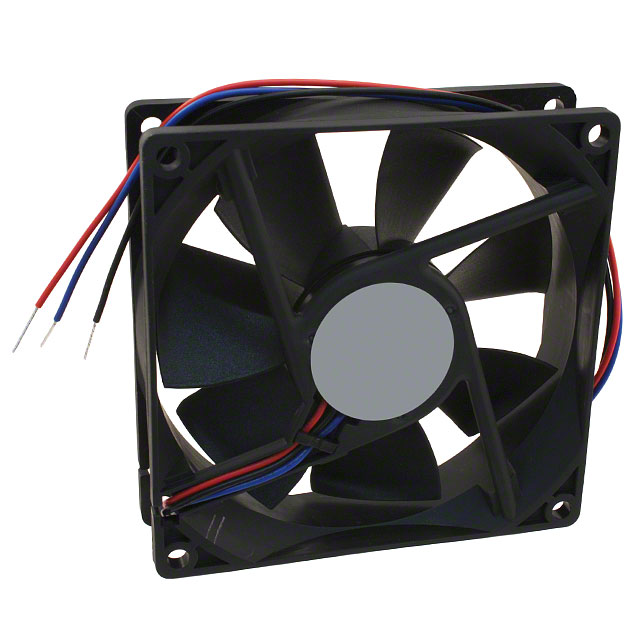

AFB0924H-R00
ObsoleteDelta Electronics
FAN AXIAL 92X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0924H-R00
ObsoleteDelta Electronics
FAN AXIAL 92X25.4MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0924H-R00 |
|---|---|
| Air Flow | 51.2 CFM |
| Air Flow | 1.43 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 34 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.4 W |
| RPM | 2850 RPM |
| Static Pressure | 44.1 Pa |
| Static Pressure | 0.177 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 99.34 g |
| Weight | 0.219 lb |
| Width [y] | 25.4 mm |
AFB0924 Series
| Part | Width [y] | Lifetime @ Temp. | Voltage - Rated | Material - Frame | RPM | Approval Agency | Noise | Material - Blade | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Static Pressure | Static Pressure | Features | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Power (Watts) | Bearing Type | Fan Type | Termination | Weight | Weight | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 3800 RPM | CE CSA UL VDE | 45 dB(A) | Plastic | 67.8 CFM | 1.9 m³/min | 70 °C | 70 °C | -10 °C | -10 °C | 75.2 Pa | 0.302 in H2O | Locked Rotor Protection Speed Sensor (Tach) | 27.6 VDC | 14 VDC | 0.22 A | 5.28 W | Ball | Tubeaxial | 3 Wire Leads | 0.218 lb | 98.88 g | |
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 3800 RPM | CE CSA UL VDE | 45 dB(A) | Plastic | 67.8 CFM | 1.9 m³/min | 70 °C | 70 °C | -10 °C | -10 °C | 75.2 Pa | 0.302 in H2O | 27.6 VDC | 14 VDC | 0.22 A | 5.28 W | Ball | Tubeaxial | 2 Wire Leads | 0.218 lb | 98.88 g | ||
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 2850 RPM | CE CSA UL VDE | 34 dB(A) | Plastic | 51.2 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 44.1 Pa | 0.177 in H2O | Locked Rotor Sensor | 27.6 VDC | 14 VDC | 100 mA | 2.4 W | Ball | Tubeaxial | 3 Wire Leads | 0.219 lb | 99.34 g | 1.43 m³/min | |
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 2850 RPM | CE CSA UL VDE | 34 dB(A) | Plastic | 51.2 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 44.1 Pa | 0.177 in H2O | Locked Rotor Protection Speed Sensor (Tach) | 27.6 VDC | 14 VDC | 100 mA | 2.4 W | Ball | Tubeaxial | 3 Wire Leads | 0.219 lb | 99.34 g | 1.43 m³/min | |
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 2450 RPM | CE CSA UL VDE | 30 dB(A) | Plastic | 43.8 CFM | 1.23 m³/min | 70 °C | 70 °C | -10 °C | -10 °C | 32.4 Pa | 0.13 in H2O | 27.6 VDC | 14 VDC | 1.92 W | Ball | Tubeaxial | 2 Wire Leads | 0.219 lb | 99.34 g | |||
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 3800 RPM | CE CSA UL VDE | 46 dB(A) | Plastic | 81.5 CFM | 2.28 m³/min | 70 °C | 70 °C | -10 °C | -10 °C | 85.9 Pa | 0.345 in H2O | 26.4 VDC | 14 VDC | 0.25 A | 6 W | Ball | Tubeaxial | 2 Wire Leads | 0.267 lb | 121.11 g | ||
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 3200 RPM | CE CSA UL VDE | 38 dB(A) | Plastic | 57.9 CFM | 1.62 mł/min | 70 °C | 70 °C | -10 °C | -10 °C | 55 Pa | 0.221 in H2O | 27.6 VDC | 14 VDC | 3.12 W | Ball | Tubeaxial | 2 Wire Leads | 0.218 lb | 98.88 g | |||
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 4800 RPM | CE CSA UL VDE | 53 dB | Plastic | 102.6 CFM | 2.87 m³/min | 70 °C | 70 °C | -10 °C | -10 °C | 131 Pa | 0.526 in H2O | Locked Rotor Protection Speed Sensor (Tach) | 26.4 VDC | 14 VDC | 400 mA | 9.6 W | Ball | Tubeaxial | 3 Wire Leads | 0.267 lb | 121.11 g | |
Delta Electronics | 20 mm | 70000 Hrs | 24 VDC | Plastic | 2700 RPM | CE CSA UL VDE | 35 dB | Plastic | 54.6 CFM | 1.53 mł/min | 70 °C | 70 °C | -10 °C | -10 °C | 34.3 Pa | 0.138 in H2O | 27.6 VDC | 14 VDC | 100 mA | 2.4 W | Ball | Tubeaxial | 2 Wire Leads | 0.203 lb | 92.08 g | ||
Delta Electronics | 25.4 mm | 70000 Hrs | 24 VDC | Plastic | 2100 RPM | CE CSA UL VDE | 25 dB(A) | Plastic | 37.1 CFM | 1.04 mł/min | 70 °C | 70 °C | -10 °C | -10 °C | 24.9 Pa | 0.1 in H2O | Locked Rotor Sensor | 27.6 VDC | 14 VDC | 60 mA | 1.44 W | Ball | Tubeaxial | 3 Wire Leads | 0.219 lb | 99.34 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFB0924 Series
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 51.2 CFM (1.43m³/min) 3 Wire Leads
