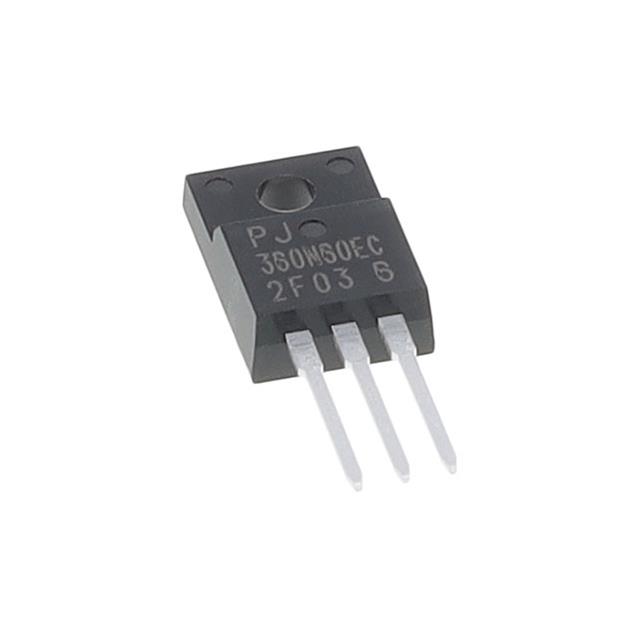

PJMF360N60EC_T0_00001

Active

Panjit International Inc.

600V SUPER JUNCTION MOSFET

Search across all available documentation for this part.

Active

Panjit International Inc.

600V SUPER JUNCTION MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	PJMF360N60EC_T0_00001

Current - Continuous Drain (Id) @ 25°C	11 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	18.7 nC
Input Capacitance (Ciss) (Max) @ Vds	735 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-3 Full Pack, Isolated Tab
Rds On (Max) @ Id, Vgs	360 mOhm
Supplier Device Package	ITO-220AB-F
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	4 V

Part	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Package / Case	FET Type	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type
Panjit International Inc. PJMF360N60E1_T0_00001	32 W	4 V	10 V	30 V	ITO-220AB-F	11 A	600 V	-55 °C	150 °C	22 nC	MOSFET (Metal Oxide)	TO-220-3 Full Pack Isolated Tab	N-Channel	360 mOhm	717 pF	Through Hole
Panjit International Inc. PJMF360N60EC_T0_00001		4 V	10 V	30 V	ITO-220AB-F	11 A	600 V	-55 °C	150 °C	18.7 nC	MOSFET (Metal Oxide)	TO-220-3 Full Pack Isolated Tab	N-Channel	360 mOhm	735 pF	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 600 V 11A (Tc) 30W (Tc) Through Hole ITO-220AB-F
