M22-2530946

Active

Harwin Inc.

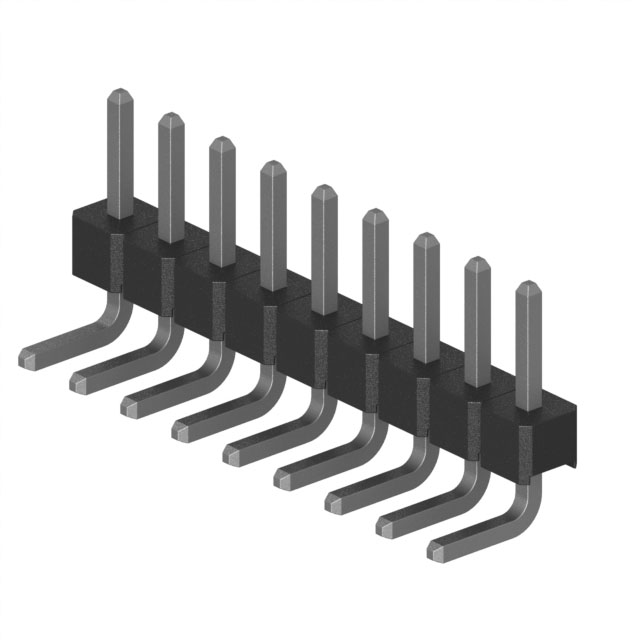

9 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M22 Series Spec Sheet +1

M22-2530946

Active

Harwin Inc.

9 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M22 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2530946

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-253 Series

Part	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Insulation Material	Termination	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Shrouding	Contact Shape	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Material Flammability Rating	Connector Type	Contact Finish - Post
Harwin Inc. M22-2530405	0.079 in	2 mm	Through Hole Right Angle	4	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2530205	0.079 in	2 mm	Through Hole Right Angle	2	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2530305	0.079 in	2 mm	Through Hole Right Angle		Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2530946	0.079 in	2 mm	Through Hole Right Angle	9	Nylon 6T Polyamide (PA6T)	Solder		All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header	Tin
Harwin Inc. M22-2530605	0.079 in	2 mm	Through Hole Right Angle	6	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2531405	0.079 in	2 mm	Through Hole Right Angle	14	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2532005	0.079 in	2 mm	Through Hole Right Angle	20	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header
Harwin Inc. M22-2530746	0.079 in	2 mm	Through Hole Right Angle	7	Nylon 6T Polyamide (PA6T)	Solder		All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header	Tin
Harwin Inc. M22-2530805	0.079 in	2 mm	Through Hole Right Angle	8	Nylon 6T Polyamide (PA6T)	Solder	Gold	All	Black	-40 °C	105 ░C	Phosphor Bronze	Male Pin	Unshrouded	Square	0.138 in	3.5 mm	Push-Pull	0.094 in	2.4 mm	1	0.079 in	2 mm	1 A	UL94 V-0	Cuttable Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.36
Newark	Each	1000	$ 0.36

Description

General part information

M22-253 Series

Connector Header Through Hole, Right Angle 9 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M20-003

M22 Series Spec Sheet

Datasheet
