M22-2532005 - M22 Series

M22-2532005

Active
Harwin Inc.

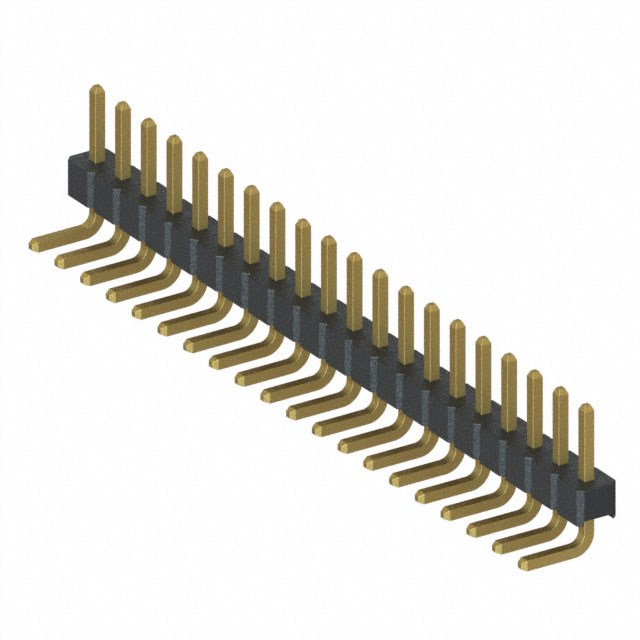

PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 20 CONTACTS, THROUGH HOLE, M22 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM22 Series Spec SheetDatasheet+4
M22-2532005 - M22 Series

M22-2532005

Active
Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 20 CONTACTS, THROUGH HOLE, M22 SERIES

Deep-Dive with AI

DocumentsM22 Series Spec SheetDatasheet+4

Technical Specifications

Parameters and characteristics for this part

SpecificationM22-2532005
Connector TypeCuttable, Header
Contact Finish - MatingGold
Contact Length - Mating0.138 in
Contact Length - Mating3.5 mm
Contact Length - Post0.094 in
Contact Length - Post2.4 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)1 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.079 in
Insulation Height2 mm
Insulation MaterialNylon 6T, Polyamide (PA6T)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions20
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
ShroudingUnshrouded
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.75
10$ 1.49
100$ 1.26
500$ 1.13
1000$ 1.07
5000$ 0.96
10000$ 0.91
NewarkEach 500$ 1.01
1000$ 0.95

Description

General part information

M22-253 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
