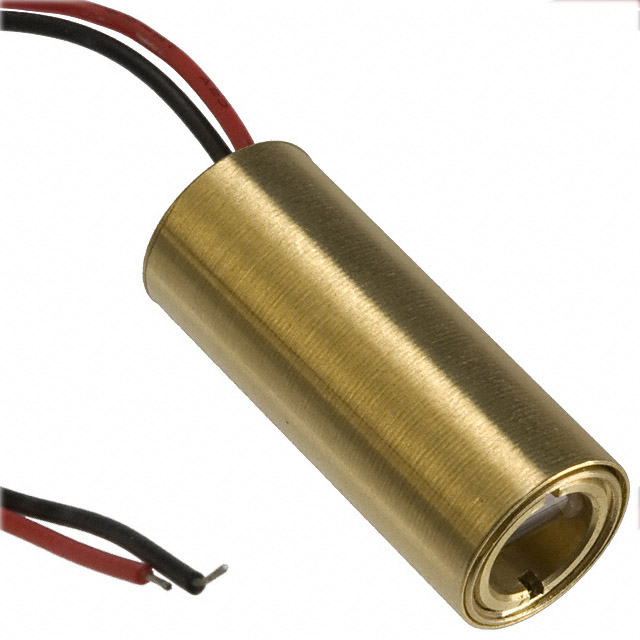

VLM-635-27-LPA

Active

Quarton Inc.

LASER DIODE 635NM 5MW 12.5MM DIA

Search across all available documentation for this part.

Active

Quarton Inc.

LASER DIODE 635NM 5MW 12.5MM DIA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case [diameter]	Current Rating (Amps)	Power (Watts)	Wavelength
Quarton Inc. VLM-635-32 LPA	3 V	6 V	Cylinder	8.5 mm	60 mA	4 mW	635 nm
Quarton Inc. VLM-635-11 LPA	3 V	5 V	Cylinder	10.5 mm	40 mA		635 nm
Quarton Inc. VLM-635-63 LPT-200	3 V	6 V	Cylinder	10.6 mm	40 mA	1 mW	635 nm
Quarton Inc. VLM-635-63 LPO-100	3 V	6 V	Cylinder	10.6 mm	40 mA	0.39 mW	635 nm
Quarton Inc. VLM-635-04 LPA	2.6 V	6 V	Cylinder	6.55 mm	50 mA		635 nm
Quarton Inc. VLM-635-03 LPA	2.6 V	5 V	Cylinder	7 mm	50 mA		635 nm
Quarton Inc. VLM-635-04 LPT	2.6 V	6 V	Cylinder	6.55 mm	35 mA	1 mW	635 nm
Quarton Inc. VLM-635-02 LPT	2.6 V	5 V	Cylinder	10.5 mm	50 mA	1 mW	635 nm
Quarton Inc. VLM-635-27-LPA	2.6 V	5 V	Cylinder	12.5 mm	40 mA	5 mW	635 nm
Quarton Inc. VLM-635-01 LPT	2.6 V	5 V	Cylinder	10.4 mm	50 mA	1 mW	635 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Laser Diode 635nm 5mW 2.6V ~ 5V 40mA Cylinder (12.5mm Dia)
