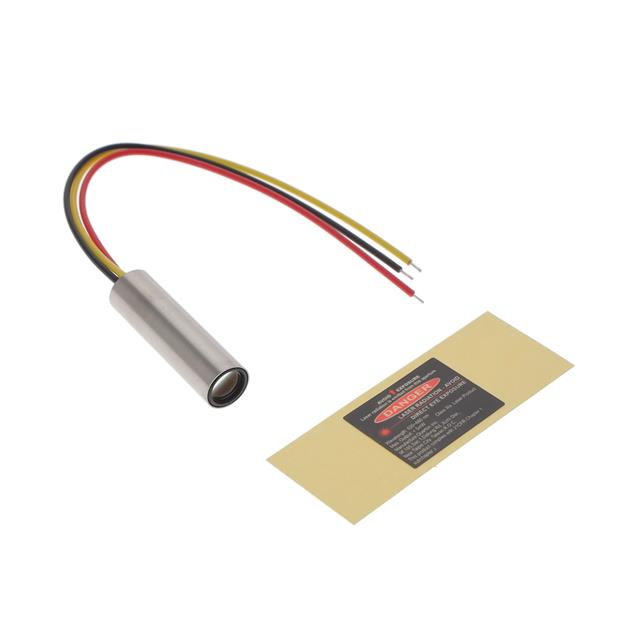

VLM-635-32 LPA

Active

Quarton Inc.

TTL LASER MODULE, 635 NM, CLASS

Search across all available documentation for this part.

Active

Quarton Inc.

TTL LASER MODULE, 635 NM, CLASS

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case [diameter]	Current Rating (Amps)	Power (Watts)	Wavelength
Quarton Inc. VLM-635-32 LPA	3 V	6 V	Cylinder	8.5 mm	60 mA	4 mW	635 nm
Quarton Inc. VLM-635-11 LPA	3 V	5 V	Cylinder	10.5 mm	40 mA		635 nm
Quarton Inc. VLM-635-63 LPT-200	3 V	6 V	Cylinder	10.6 mm	40 mA	1 mW	635 nm
Quarton Inc. VLM-635-63 LPO-100	3 V	6 V	Cylinder	10.6 mm	40 mA	0.39 mW	635 nm
Quarton Inc. VLM-635-04 LPA	2.6 V	6 V	Cylinder	6.55 mm	50 mA		635 nm
Quarton Inc. VLM-635-03 LPA	2.6 V	5 V	Cylinder	7 mm	50 mA		635 nm
Quarton Inc. VLM-635-04 LPT	2.6 V	6 V	Cylinder	6.55 mm	35 mA	1 mW	635 nm
Quarton Inc. VLM-635-02 LPT	2.6 V	5 V	Cylinder	10.5 mm	50 mA	1 mW	635 nm
Quarton Inc. VLM-635-27-LPA	2.6 V	5 V	Cylinder	12.5 mm	40 mA	5 mW	635 nm
Quarton Inc. VLM-635-01 LPT	2.6 V	5 V	Cylinder	10.4 mm	50 mA	1 mW	635 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Laser Diode 635nm 4mW 3V ~ 6V 60mA Cylinder (8.5mm Dia)
