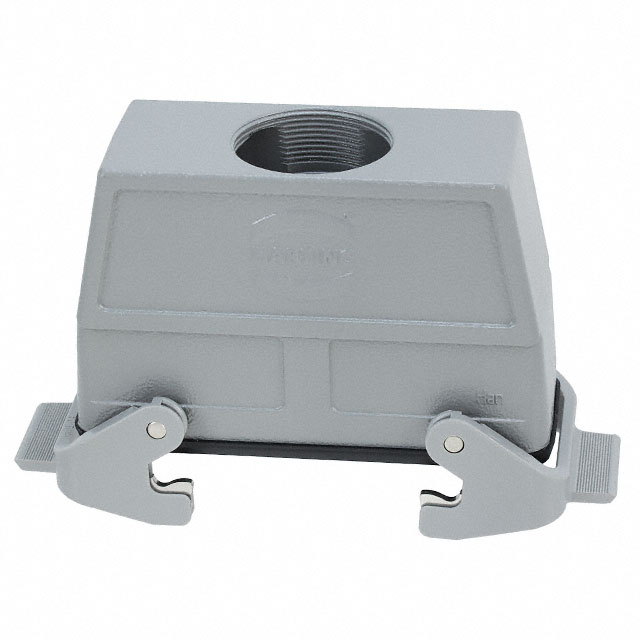

HEAVY DUTY CONNECTOR, COUPLER, M40 TOP ENTRY, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

Documents19300240738 Prod Declaration Cert Datasheet +2

19300240738

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, COUPLER, M40 TOP ENTRY, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Documents19300240738 Prod Declaration Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300240738

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	77.4 mm
Size / Dimension [z]	3.047 "
Style	Bottom Entry

19300240 Series

Part	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Ingress Protection	Size	Lock Location	Style	Housing Material	Thread Size	Features	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19300240548	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast
HARTING Technology Group 19300240458	Gray	Hood	125 °C	-40 °C								IP65 IP66 IP67	24 B		Top Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240737	Gray	Hood - Coupling	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	78.4 mm	1.693 in	3.087 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood Top	Bottom Entry	Aluminum Die Cast	M32	Cable to Cable
HARTING Technology Group 19300240438	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood	Top Entry	Aluminum Die Cast
HARTING Technology Group 19300240297	Gray	Base - Box Mount	125 °C	-40 °C	Powder Coated	144 mm	5.669 "			2.244 "	3.181 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M32		80.8 mm	57 mm
HARTING Technology Group 19300240273	Gray	Base - Box Mount	125 °C	-40 °C	Powder Coated	144 mm	5.669 "			2.244 "	3.181 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Base Bottom	Side Entry	Aluminum Die Cast		Feed Through	80.8 mm	57 mm
HARTING Technology Group 19300240437	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood	Top Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240547	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240466	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 IP66 IP67	24 B	Locking Clip (2) on Base Bottom	Dual Top Entry	Aluminum Die Cast	M25
HARTING Technology Group 19300240738	Gray	Hood - Coupling	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	77.4 mm	1.693 in	3.047 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood Top	Bottom Entry	Aluminum Die Cast		Cable to Cable
