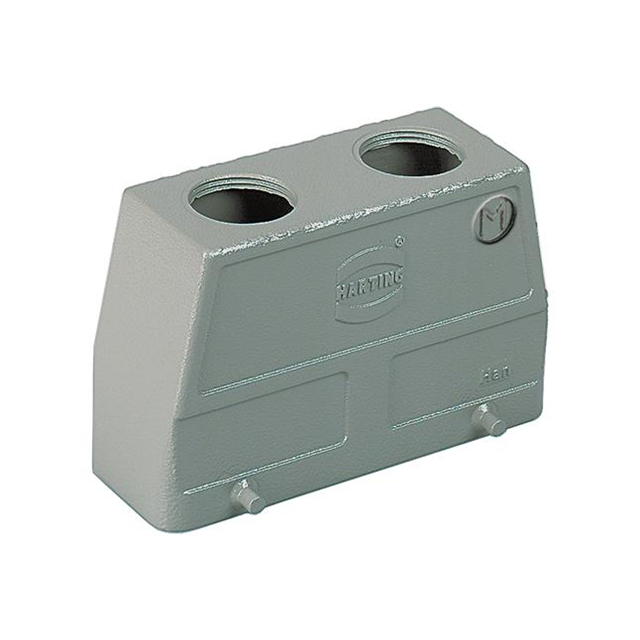

19300240466

Active

HARTING Technology Group

HAN 24B-GG2-M25 ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300240466 Prod Declaration Cert

19300240466

Active

HARTING Technology Group

HAN 24B-GG2-M25 ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet 19300240466 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300240466

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP66, IP67, IP65
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Dual, Top Entry
Thread Size	M25

19300240 Series

Part	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Ingress Protection	Size	Lock Location	Style	Housing Material	Thread Size	Features	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19300240548	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast
HARTING Technology Group 19300240458	Gray	Hood	125 °C	-40 °C								IP65 IP66 IP67	24 B		Top Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240737	Gray	Hood - Coupling	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	78.4 mm	1.693 in	3.087 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood Top	Bottom Entry	Aluminum Die Cast	M32	Cable to Cable
HARTING Technology Group 19300240438	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood	Top Entry	Aluminum Die Cast
HARTING Technology Group 19300240297	Gray	Base - Box Mount	125 °C	-40 °C	Powder Coated	144 mm	5.669 "			2.244 "	3.181 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M32		80.8 mm	57 mm
HARTING Technology Group 19300240273	Gray	Base - Box Mount	125 °C	-40 °C	Powder Coated	144 mm	5.669 "			2.244 "	3.181 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Base Bottom	Side Entry	Aluminum Die Cast		Feed Through	80.8 mm	57 mm
HARTING Technology Group 19300240437	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood	Top Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240547	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (1) on Base Bottom	Side Entry	Aluminum Die Cast	M32
HARTING Technology Group 19300240466	Gray	Hood	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	IP65 IP66 IP67	24 B	Locking Clip (2) on Base Bottom	Dual Top Entry	Aluminum Die Cast	M25
HARTING Technology Group 19300240738	Gray	Hood - Coupling	125 °C	-40 °C	Powder Coated	120 mm	4.724 "	43 mm	77.4 mm	1.693 in	3.047 "	IP65 - Dust Tight Water Resistant	24 B	Locking Clip (2) on Hood Top	Bottom Entry	Aluminum Die Cast		Cable to Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.81
		10	$ 53.96
		25	$ 51.89
		50	$ 50.16
		100	$ 47.39
Newark	Each	1	$ 61.73
		10	$ 58.27
		25	$ 56.53
		50	$ 52.37
		100	$ 49.60

Description

General part information

19300240 Series

Hood Connector Top Entry, Dual M25 24B IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof

Documents

Technical documentation and resources

Datasheet

19300240466 Prod Declaration Cert
