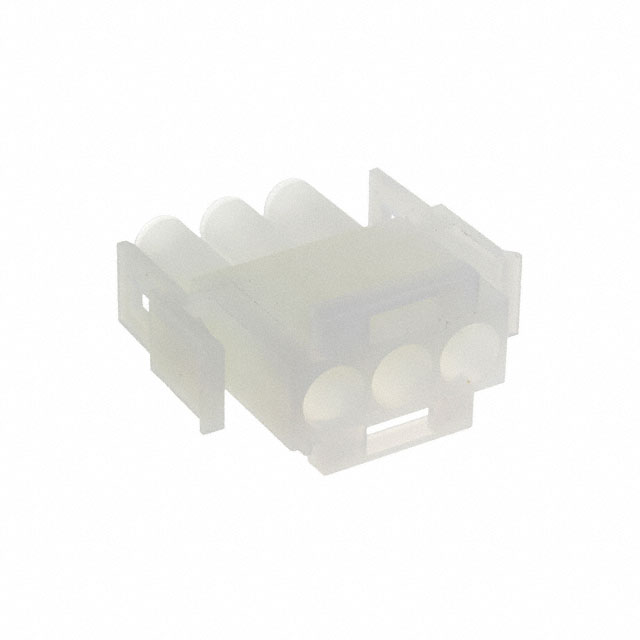

DME-M-03

Active

Adam Tech

CONN RCPT HSG 3POS 6.35MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DME-M-03

Active

Adam Tech

CONN RCPT HSG 3POS 6.35MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DME-M-03

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C

DME-M Series

Part	Contact Type	Connector Type	Mounting Type	Contact Termination	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Note	Color	Number of Positions	Contact Material	Material Flammability Rating	Style	Features	Number of Positions Loaded	Fastening Type	Voltage Rating	Shrouding	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Shape	Insulation Height	Insulation Height	Termination	Row Spacing	Row Spacing
Adam Tech DME-M2-02	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	2
Adam Tech DME-M-08-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6			8	Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder
Adam Tech DME-M2-03	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural
Adam Tech DME-M2-09-SQ	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	3	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	9																				6.35 mm	0.25 in
Adam Tech DME-M-03	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural
Adam Tech DME-M-06	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	6
Adam Tech DME-M-06-SQ	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			2	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	6																				6.35 mm	0.25 in
Adam Tech DME-M-03-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6				Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder
Adam Tech DME-M-09-SQ	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			2	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	9																				6.35 mm	0.25 in
Adam Tech DME-M-02-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6			2	Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.07
		25	$ 0.07
		50	$ 0.06
		100	$ 0.06
		250	$ 0.05
		500	$ 0.05
		1000	$ 0.04
		2500	$ 0.04
