DME-M2-09-SQ

Active

Adam Tech

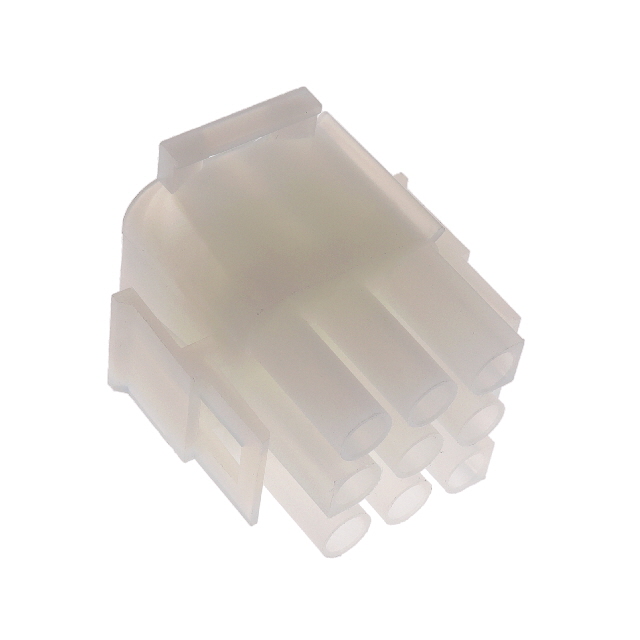

CONN PLUG HSG 9POS 6.35MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DME-M2-09-SQ

Active

Adam Tech

CONN PLUG HSG 9POS 6.35MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DME-M2-09-SQ

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	9
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Row Spacing	6.35 mm
Row Spacing	0.25 in

DME-M Series

Part	Contact Type	Connector Type	Mounting Type	Contact Termination	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Note	Color	Number of Positions	Contact Material	Material Flammability Rating	Style	Features	Number of Positions Loaded	Fastening Type	Voltage Rating	Shrouding	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Shape	Insulation Height	Insulation Height	Termination	Row Spacing	Row Spacing
Adam Tech DME-M2-02	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	2
Adam Tech DME-M-08-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6			8	Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder
Adam Tech DME-M2-03	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	1	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural
Adam Tech DME-M2-09-SQ	Male Pin	Plug	Panel Mount Snap-In	Crimp	0.25 in	6.35 mm	3	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	9																				6.35 mm	0.25 in
Adam Tech DME-M-03	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural
Adam Tech DME-M-06	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	6
Adam Tech DME-M-06-SQ	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			2	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	6																				6.35 mm	0.25 in
Adam Tech DME-M-03-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6				Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder
Adam Tech DME-M-09-SQ	Male Pin	Receptacle	Panel Mount Snap-In	Crimp			2	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Natural	9																				6.35 mm	0.25 in
Adam Tech DME-M-02-RA-E	Male Pin	Header	Through Hole Right Angle				1	-55 °C	105 ░C	Polyamide (PA66) Nylon 6/6			2	Phosphor Bronze	UL94 V-2	Board to Cable/Wire	Mounting Flange	All	Locking Ramp	600 VAC	Shrouded - 4 Wall	13 A	Tin	6.35 mm	0.25 in	4.06 mm	0.16 in	Natural	Circular	9.14 mm	0.36 in	Solder
