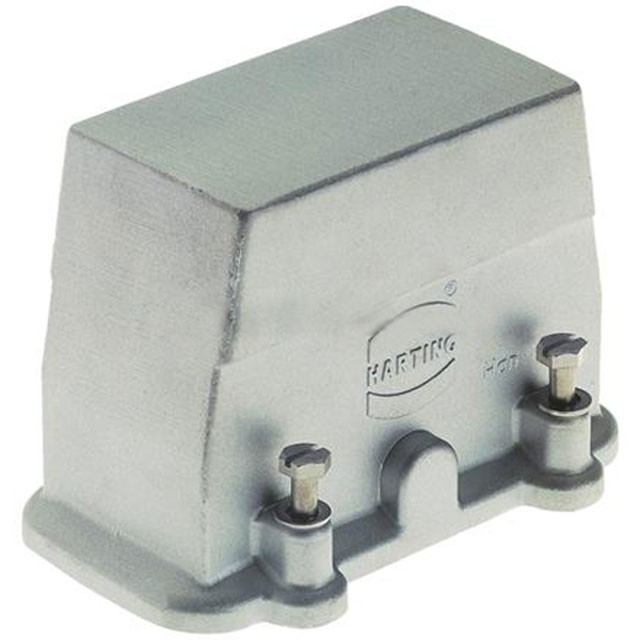

19620100542

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10B; FOR CABLE; IP65; EMC

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10B; FOR CABLE; IP65; EMC

Technical Specifications

Parameters and characteristics for this part

Specification	19620100542

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.386 in
Size / Dimension [x]	86 mm
Size / Dimension [y]	2.795 in
Size / Dimension [y]	71 mm
Size / Dimension [z]	2.953 in
Size / Dimension [z]	75 mm
Style	Side Entry
Thread Size	M32

Part	Thread Size	Housing Material	Lock Location	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
HARTING Technology Group 19620100542	M32	Aluminum Die Cast	Screw Locks on Hood	Hood	Side Entry	125 °C	-40 °C	10B	IP65 - Dust Tight Water Resistant	2.795 in	3.386 in	2.953 in	71 mm	75 mm	86 mm
HARTING Technology Group 19620100442	M32	Aluminum Die Cast	Screw Locks on Hood	Hood	Top Entry	125 °C	-40 °C	10B	IP65 - Dust Tight Water Resistant	2.795 in	3.386 in	2.953 in	71 mm	75 mm	86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M32 10B IP65 - Dust Tight, Water Resistant
