19620100442
ActiveHARTING Technology Group

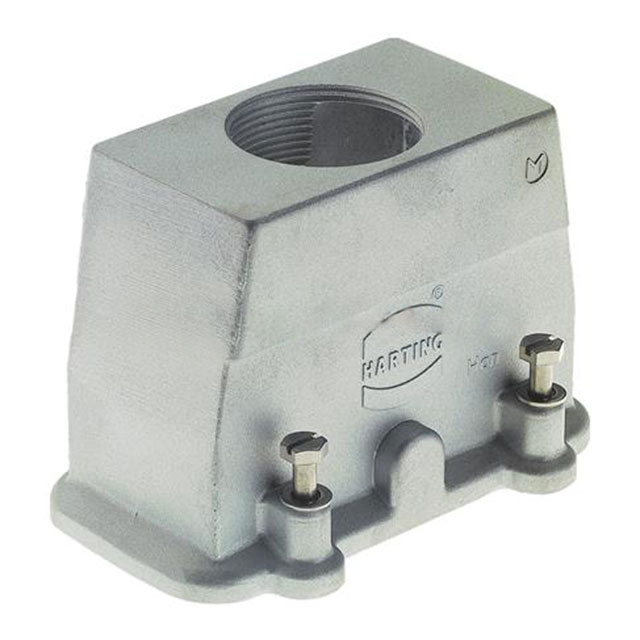

CONN HOOD TOP ENTRY SZ10B M32
Deep-Dive with AI
Search across all available documentation for this part.
19620100442
ActiveHARTING Technology Group
CONN HOOD TOP ENTRY SZ10B M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19620100442 |
|---|---|
| Connector Type | Hood |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 3.386 in |
| Size / Dimension [x] | 86 mm |
| Size / Dimension [y] | 2.795 in |
| Size / Dimension [y] | 71 mm |
| Size / Dimension [z] | 2.953 in |
| Size / Dimension [z] | 75 mm |
| Style | Top Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 148.85 | |
| 10 | $ 113.65 | |||
| 25 | $ 103.43 | |||
| 50 | $ 96.77 | |||
| 100 | $ 90.93 | |||
Description
General part information
19620100 Series
Hood Connector Top Entry M32 10B IP65 - Dust Tight, Water Resistant
