ANT-315-PW-RA

Active

TE Connectivity Linx

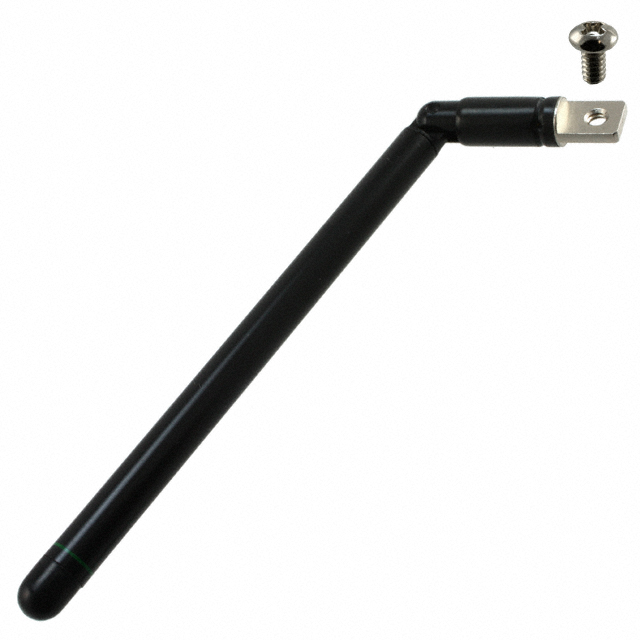

RF ANT 315MHZ WHIP TILT SCREW-MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-315-PW-RA

Active

TE Connectivity Linx

RF ANT 315MHZ WHIP TILT SCREW-MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-315-PW-RA

Antenna Type	Tilt, Whip
Applications	ISM, Alarms, Security Systems, Remote Control
Frequency (Center/Band)	315 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Height (Max)	131.57 mm
Height (Max) [Max]	5.18 in
Number of Bands	1
RF Family/Standard	General ISM
Termination	Screw-Mount
VSWR	2

ANT-315 Series

Part	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Mounting Type	Number of Bands	Applications	Termination	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Gain	Height (Max)
TE Connectivity Linx ANT-315-SP	1.5 mm	0.059 in	General ISM	1.9	Chip	1 GHz	300 MHz	Surface Mount	1	Alarms ISM Remote Control Security Systems	Solder	312 MHz	317 MHz	315 MHz
TE Connectivity Linx ANT-315-CW-HD			General ISM	2	Whip Straight	1 GHz	300 MHz	Connector Mount	1	Alarms ISM Remote Control Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz	117 mm	4.606 in
TE Connectivity Linx ANT-315-PW-LP		1.988 in	General ISM	1.9	Whip Straight	1 GHz	300 MHz		1	Alarms ISM Remote Control Security Systems	Screw-Mount			315 MHz			-4 dBi	50.5 mm
TE Connectivity Linx ANT-315-HETH		0.35 in	General ISM	2	Helical	1 GHz	300 MHz	Through Hole	1	Alarms ISM Remote Control Security Systems	Solder	305 MHz	325 MHz	315 MHz				8.89 mm
TE Connectivity Linx ANT-315-PW-RA		5.18 in	General ISM	2	Tilt Whip	1 GHz	300 MHz		1	Alarms ISM Remote Control Security Systems	Screw-Mount			315 MHz				131.57 mm
TE Connectivity Linx ANT-315-CW-RH		2.008 in	General ISM	1.9	Whip Straight	1 GHz	300 MHz	Connector Mount	1	Alarms ISM Remote Control Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz				51 mm
TE Connectivity Linx ANT-315-CW-HW-SMA	120 mm	4.724 "	General ISM	2	Whip Straight	1 GHz	300 MHz	Connector Mount	1	Alarms ISM Remote Control Security Systems		304 MHz	325 MHz	315 MHz			0 dBi
TE Connectivity Linx ANT-315-CW-HW	120 mm	4.724 "	General ISM	2	Whip Straight	1 GHz	300 MHz	Connector Mount	1	Alarms ISM Remote Control Security Systems	RP-SMA Male	304 MHz	325 MHz	315 MHz			0 dBi
TE Connectivity Linx ANT-315-HESM		0.35 in	General ISM	2	Helical	1 GHz	300 MHz	Surface Mount	1	Alarms ISM Remote Control Security Systems	Solder	305 MHz	325 MHz	315 MHz				8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 3.76

Description

General part information

ANT-315 Series

315MHz Alarms, ISM, Remote Control, Security Systems Whip, Tilt RF Antenna 311MHz ~ 319MHz Screw-Mount Panel Mount

Documents

Technical documentation and resources
