ANT-315-CW-RH
ObsoleteTE Connectivity Linx

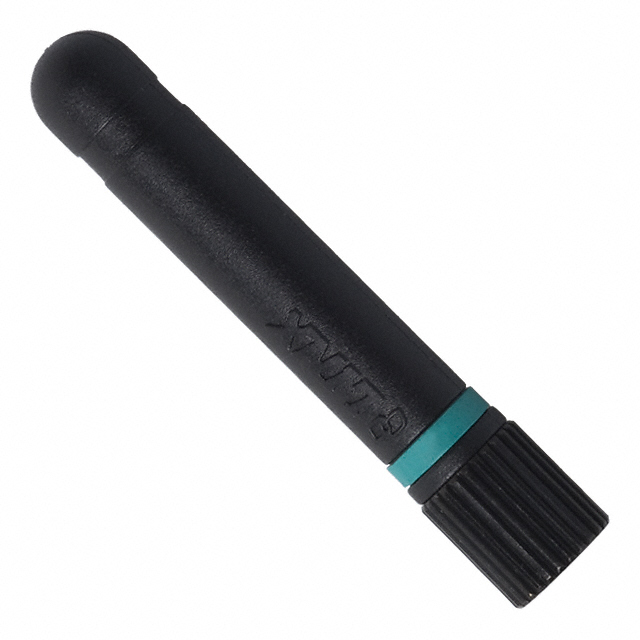

RF ANT 315MHZ WHIP STR RP-SMA ML
Deep-Dive with AI
Search across all available documentation for this part.
ANT-315-CW-RH
ObsoleteTE Connectivity Linx
RF ANT 315MHZ WHIP STR RP-SMA ML
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-315-CW-RH |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | ISM, Alarms, Security Systems, Remote Control |
| Frequency (Center/Band) | 315 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 320 MHz |
| Frequency Range [Min] | 310 MHz |
| Height (Max) | 51 mm |
| Height (Max) [Max] | 2.008 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | RP-SMA Male |
| VSWR | 1.9 |
ANT-315 Series
| Part | Height (Max) [Max] | Height (Max) [Max] | RF Family/Standard | VSWR | Antenna Type | Frequency Group [Max] | Frequency Group [Min] | Mounting Type | Number of Bands | Applications | Termination | Frequency Range [Min] | Frequency Range [Max] | Frequency (Center/Band) | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Gain | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx | 1.5 mm | 0.059 in | General ISM | 1.9 | Chip | 1 GHz | 300 MHz | Surface Mount | 1 | Alarms ISM Remote Control Security Systems | Solder | 312 MHz | 317 MHz | 315 MHz | ||||
TE Connectivity Linx | General ISM | 2 | Whip Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms ISM Remote Control Security Systems | RP-SMA Male | 310 MHz | 320 MHz | 315 MHz | 117 mm | 4.606 in | ||||
TE Connectivity Linx | 1.988 in | General ISM | 1.9 | Whip Straight | 1 GHz | 300 MHz | 1 | Alarms ISM Remote Control Security Systems | Screw-Mount | 315 MHz | -4 dBi | 50.5 mm | ||||||
TE Connectivity Linx | 0.35 in | General ISM | 2 | Helical | 1 GHz | 300 MHz | Through Hole | 1 | Alarms ISM Remote Control Security Systems | Solder | 305 MHz | 325 MHz | 315 MHz | 8.89 mm | ||||
TE Connectivity Linx | 5.18 in | General ISM | 2 | Tilt Whip | 1 GHz | 300 MHz | 1 | Alarms ISM Remote Control Security Systems | Screw-Mount | 315 MHz | 131.57 mm | |||||||
TE Connectivity Linx | 2.008 in | General ISM | 1.9 | Whip Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms ISM Remote Control Security Systems | RP-SMA Male | 310 MHz | 320 MHz | 315 MHz | 51 mm | ||||
TE Connectivity Linx | 120 mm | 4.724 " | General ISM | 2 | Whip Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms ISM Remote Control Security Systems | 304 MHz | 325 MHz | 315 MHz | 0 dBi | ||||
TE Connectivity Linx | 120 mm | 4.724 " | General ISM | 2 | Whip Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms ISM Remote Control Security Systems | RP-SMA Male | 304 MHz | 325 MHz | 315 MHz | 0 dBi | |||
TE Connectivity Linx | 0.35 in | General ISM | 2 | Helical | 1 GHz | 300 MHz | Surface Mount | 1 | Alarms ISM Remote Control Security Systems | Solder | 305 MHz | 325 MHz | 315 MHz | 8.89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ANT-315 Series
RF ANTENNA Alarms, ISM, Remote Control, Security Systems Whip, Straight RP-SMA Male Connector Mount
