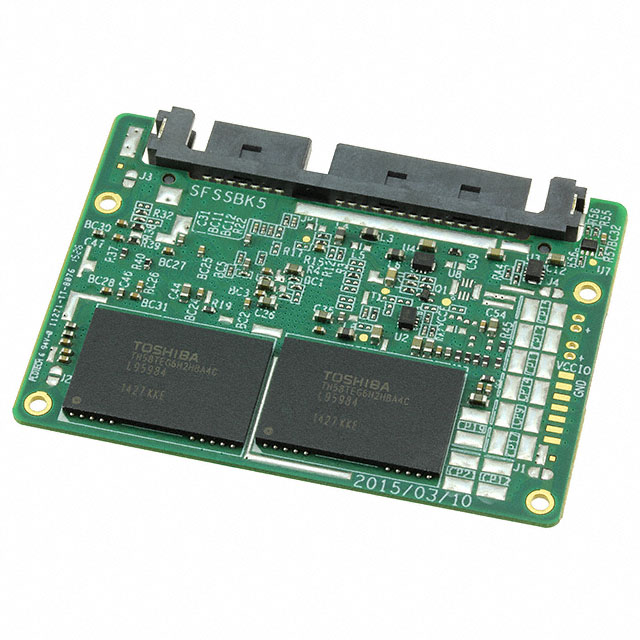

AF32GSSEL-VADXP

Active

ATP Electronics, Inc.

SSD 32GB SLIM-SATA SLC 5V

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 32GB SLIM-SATA SLC 5V

Technical Specifications

Parameters and characteristics for this part

Specification	AF32GSSEL-VADXP

Form Factor	Slim-SATA
Memory Size	32 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	54 mm
Size / Dimension [y]	39 mm
Size / Dimension [z]	4 mm
Speed - Read	530 MB/s
Speed - Write	430 MB/s
Type	SATA III

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Memory Size	Speed - Write	Memory Type	Speed - Read	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Form Factor	Technology	Voltage - Supply	Speed
ATP Electronics, Inc. AF32GSSEL-VADXP	SATA III	54 mm	39 mm	4 mm	32 GB	430 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	Slim-SATA
ATP Electronics, Inc. AF32GSSCJ-VACXP	SATA III	100 mm	69.9 mm	9.2 mm	32 GB	420 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s	85 °C	-40 °C		2.5 in
ATP Electronics, Inc. AF32GCSI-XACXP					32 GB		CFast		85 °C	-40 °C			SLC
ATP Electronics, Inc. AF32GSSIB-OEM	SATA III	60 mm	22 mm	3.5 mm	32 GB	390 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	M.2 Module
ATP Electronics, Inc. AF32GSAEL-OEM		54 mm	39 mm	4 mm	32 GB	190 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	250 MB/s	70 °C	0 °C	Slim-SATA
ATP Electronics, Inc. AF32GCFP7-TABXX					32 GB		CompactFlash®		70 °C	0 °C			MLC
ATP Electronics, Inc. AF32GSSHI-VACXP	SATA III	2 in	29.8 mm	3.7 mm	32 GB	430 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	mSATA			3.3 V
ATP Electronics, Inc. AF32GUD3-OEM					32 GB		microSD™		85 °C	-25 °C			MLC		Class 10
ATP Electronics, Inc. AF32GSMGH-AAAXP					32 GB		Solid State Drive (SSD) FLASH - NAND (MLC)		85 °C	0 °C	Disk-On-Module eUSB
ATP Electronics, Inc. AF32GSSGH-AACXP		36.9 mm	26.6 mm	9.7 mm	32 GB	18 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	21 MB/s	85 °C	-40 °C	Disk-On-Module eUSB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 310.56

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 32GB SATA III Slim-SATA 5V
