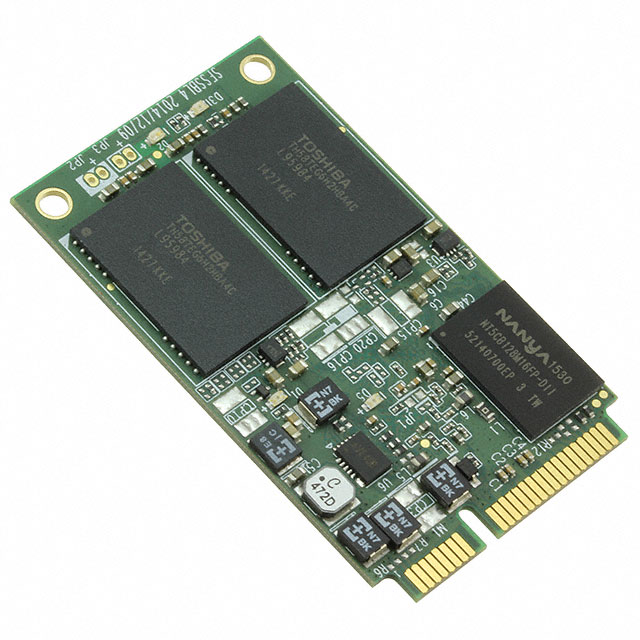

AF32GSSHI-VACXP

Active

ATP Electronics, Inc.

SSD 32GB MSATA SLC SATA III 3.3V

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 32GB MSATA SLC SATA III 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	AF32GSSHI-VACXP

Form Factor	mSATA
Memory Size	32 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.8 mm
Size / Dimension [z]	3.7 mm
Speed - Read	530 MB/s
Speed - Write	430 MB/s
Type	SATA III
Voltage - Supply	3.3 V

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Memory Size	Speed - Write	Memory Type	Speed - Read	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Form Factor	Technology	Voltage - Supply	Speed
ATP Electronics, Inc. AF32GSSEL-VADXP	SATA III	54 mm	39 mm	4 mm	32 GB	430 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	Slim-SATA
ATP Electronics, Inc. AF32GSSCJ-VACXP	SATA III	100 mm	69.9 mm	9.2 mm	32 GB	420 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s	85 °C	-40 °C		2.5 in
ATP Electronics, Inc. AF32GCSI-XACXP					32 GB		CFast		85 °C	-40 °C			SLC
ATP Electronics, Inc. AF32GSSIB-OEM	SATA III	60 mm	22 mm	3.5 mm	32 GB	390 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	M.2 Module
ATP Electronics, Inc. AF32GSAEL-OEM		54 mm	39 mm	4 mm	32 GB	190 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	250 MB/s	70 °C	0 °C	Slim-SATA
ATP Electronics, Inc. AF32GCFP7-TABXX					32 GB		CompactFlash®		70 °C	0 °C			MLC
ATP Electronics, Inc. AF32GSSHI-VACXP	SATA III	2 in	29.8 mm	3.7 mm	32 GB	430 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	530 MB/s	85 °C	-40 °C	mSATA			3.3 V
ATP Electronics, Inc. AF32GUD3-OEM					32 GB		microSD™		85 °C	-25 °C			MLC		Class 10
ATP Electronics, Inc. AF32GSMGH-AAAXP					32 GB		Solid State Drive (SSD) FLASH - NAND (MLC)		85 °C	0 °C	Disk-On-Module eUSB
ATP Electronics, Inc. AF32GSSGH-AACXP		36.9 mm	26.6 mm	9.7 mm	32 GB	18 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	21 MB/s	85 °C	-40 °C	Disk-On-Module eUSB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 32GB SATA III mSATA 3.3V
