UPLR220-026
ActiveCinch Connectivity Solutions Trompeter

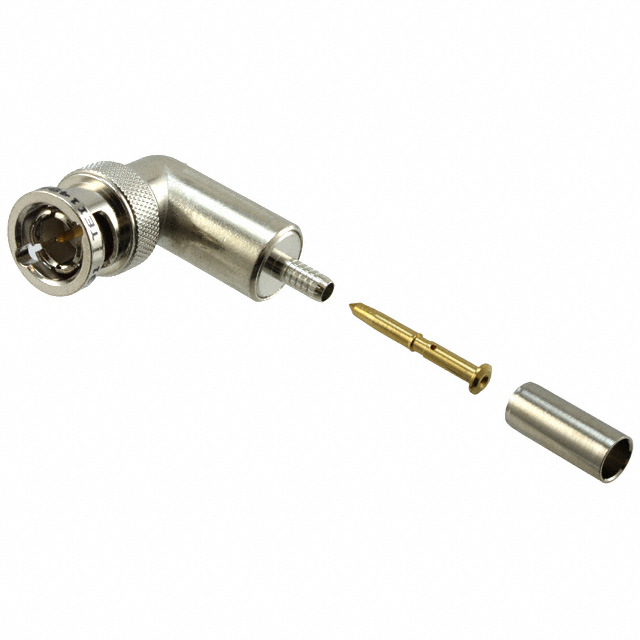

CONN BNC PLUG R/A 75 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
UPLR220-026
ActiveCinch Connectivity Solutions Trompeter
CONN BNC PLUG R/A 75 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPLR220-026 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Lucent 735A |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.19 | |
| 10 | $ 23.26 | |||
Description
General part information
UPLR220 Series
BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp
Documents
Technical documentation and resources
No documents available
