UPLR220-026/T50

Active

Cinch Connectivity Solutions Trompeter

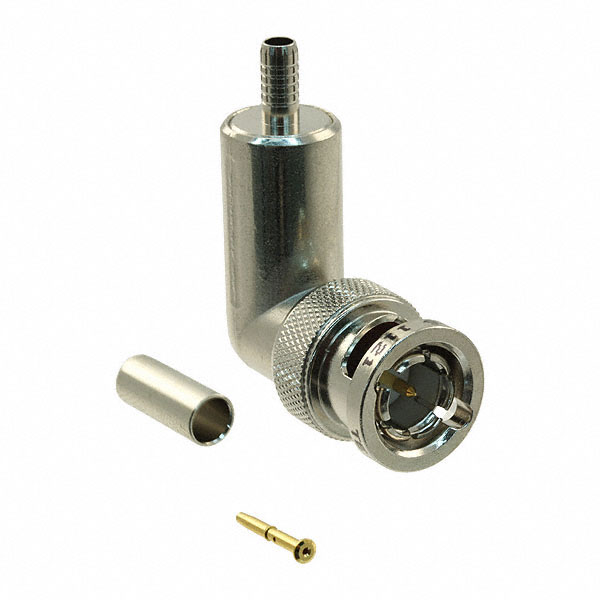

CONN BNC PLUG R/A 75 OHM 1=50

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 75 OHM 1=50

Technical Specifications

Parameters and characteristics for this part

Specification	UPLR220-026/T50

Body Finish	Nickel
Body Material	Brass
Cable Group	Lucent 735A
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Contact Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Voltage Rating	Housing Color	Number of Ports	Body Finish	Connector Style	Frequency - Max [Max]	Mounting Type	Shield Termination	Connector Type	Center Contact Plating	Fastening Type	Dielectric Material	Body Material
Cinch Connectivity Solutions Trompeter UPLR220-026/T50	Crimp	Lucent 735A	-65 ░C	165 °C	75 Ohms	500 V	Silver	1	Nickel	BNC	4 GHz	Free Hanging (In-Line) Right Angle	Crimp	Male Pin Plug	Gold	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Brass
Cinch Connectivity Solutions Trompeter UPLR220-025	Crimp	Lucent 734A	-65 ░C	165 °C	75 Ohms	500 V	Silver	1	Nickel	BNC	4 GHz	Free Hanging (In-Line) Right Angle	Crimp	Male Pin Plug	Gold	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Brass
Cinch Connectivity Solutions Trompeter UPLR220-026	Crimp	Lucent 735A	-65 ░C	165 °C	75 Ohms	500 V	Silver	1	Nickel	BNC	4 GHz	Free Hanging (In-Line) Right Angle	Crimp	Male Pin Plug	Gold	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 957.89

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp
