0345760703

Active

Molex

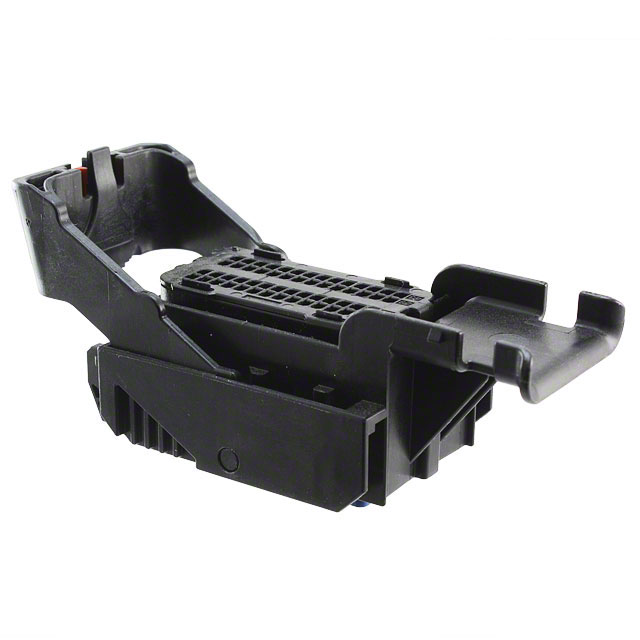

CONN RCPT HOUSING 56POS CRIMP

Search across all available documentation for this part.

Active

Molex

CONN RCPT HOUSING 56POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Termination	Mounting Type	Fastening Type	Insulation Material	Color	Features	Contact Type	Number of Positions
Molex 0345761903	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	56
Molex 0345760303	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	49
Molex 0345760703	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Nylon Polyamide (PA)	Blue	Wire Guide	Female Socket	56
Molex 0345761503	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	49

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 Rectangular Connectors - Housings Receptacle Blue
