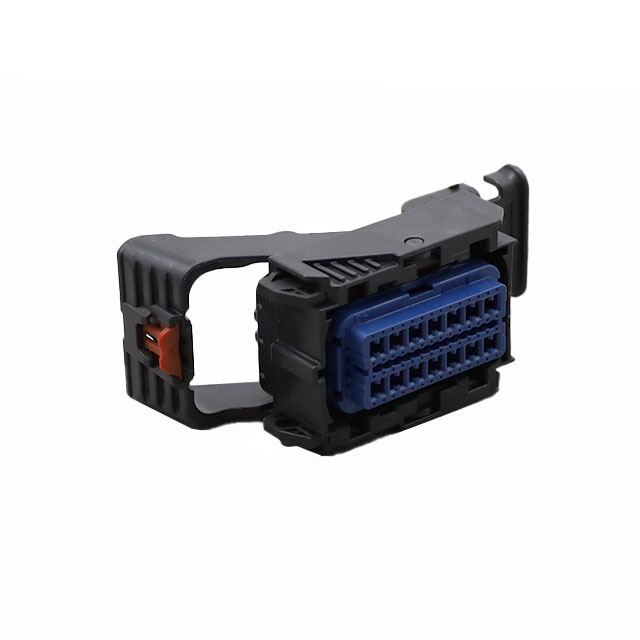

0345761903

Active

Molex

CONN HOUSING F 56 POS 2.54MM CRIMP ST CABLE MOUNT BLUE MX123™ TRAY

Search across all available documentation for this part.

Active

Molex

CONN HOUSING F 56 POS 2.54MM CRIMP ST CABLE MOUNT BLUE MX123™ TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	0345761903

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Features	Wire Guide
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	56
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Termination	Mounting Type	Fastening Type	Insulation Material	Color	Features	Contact Type	Number of Positions
Molex 0345761903	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	56
Molex 0345760303	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	49
Molex 0345760703	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Nylon Polyamide (PA)	Blue	Wire Guide	Female Socket	56
Molex 0345761503	Contacts Not Included	125 °C	-40 °C	Receptacle	Crimp	Free Hanging (In-Line)	Lever Lock	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Wire Guide	Female Socket	49

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 Rectangular Connectors - Housings Receptacle Blue
