HRMP-U.FLJ
ObsoleteHirose Electric USA, Inc.

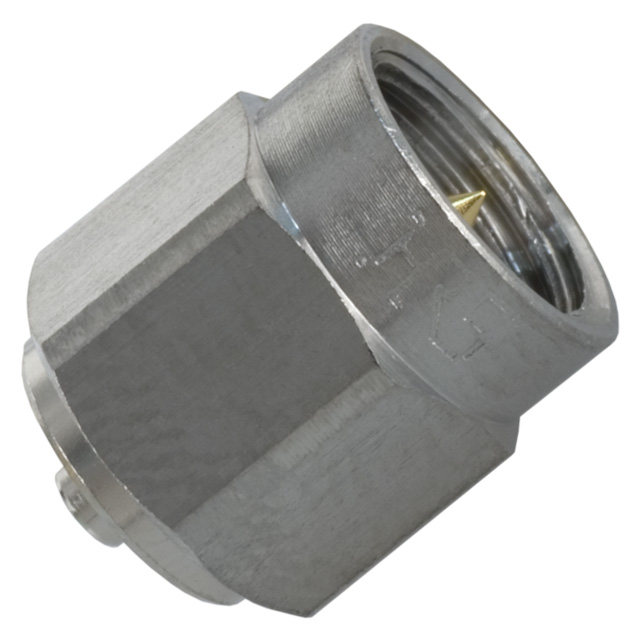

CONN ADAPT SMA PLUG TO U.FL JACK
Deep-Dive with AI
Search across all available documentation for this part.
HRMP-U.FLJ
ObsoleteHirose Electric USA, Inc.
CONN ADAPT SMA PLUG TO U.FL JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRMP-U.FLJ |
|---|---|
| Adapter Series | SMA to U.FL (UMCC) |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel; Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Male Pin, U.FL (UMCC) Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 5 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
HRMP Series
| Part | Adapter Type | Conversion Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Style | Body Material | Frequency - Max [Max] | Center Contact Plating | Dielectric Material | Convert From (Adapter End) | Mating Cycles | Center Gender | Adapter Series | Body Finish | Convert To (Adapter End) | Impedance | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | Plug to Jack | Between Series | Free Hanging (In-Line) | 85 °C | -40 °C | Beryllium Copper Brass | Straight | Stainless Steel | 26.5 GHz | Gold | Polytetrafluoroethylene (PTFE) | SMA Plug Male Pin | 1000 | Male to Male | SMA to RP-SMA | Gold; Passivated | Male Pin RP-SMA Jack | 50 Ohms | |
Hirose Electric USA, Inc. | Plug to Plug | Between Series | Free Hanging (In-Line) | 85 °C | -40 °C | Brass | Straight | Stainless Steel | 26.5 GHz | Gold | Polytetrafluoroethylene (PTFE) | SMA Plug Male Pin | 1000 | SMA to RP-SMA | Gold; Passivated | Female Socket RP-SMA Plug | 50 Ohms | ||
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | Plug to Plug | Between Series | Free Hanging (In-Line) | 125 °C | -55 °C | Beryllium Copper | Straight | Stainless Steel | 18 GHz | Gold | Polytetrafluoroethylene (PTFE) | SMP Plug Male Pin | Male to Male | SMA to SMP | Male Pin SMA Plug | 50 Ohms | Snap-On Threaded | ||
Hirose Electric USA, Inc. | Plug to Jack | Between Series | Free Hanging (In-Line) | Brass | Straight | Stainless Steel | 5 GHz | Gold | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | 500 | Male to Male | SMA to U.FL (UMCC) | Nickel; Passivated | Male Pin U.FL (UMCC) Jack | 50 Ohms | Snap-On Threaded | ||
Hirose Electric USA, Inc. | Plug to Jack | Between Series | Free Hanging (In-Line) | 85 °C | -30 ░C | Beryllium Copper | Straight | Brass | 3 GHz | Gold | Polytetrafluoroethylene (PTFE) | POD1 Jack Female Socket | 250 | SMA to POD1 | Nickel | Male Pin SMA Plug | 50 Ohms | Snap-On Threaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HRMP Series
Adapter Coaxial Connector SMA Jack, Female Socket To U.FL (UMCC) Jack, Male Pin 50 Ohms
