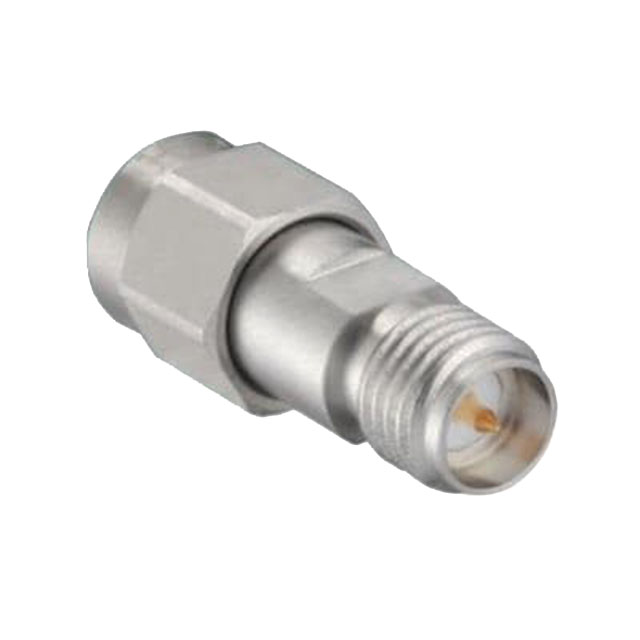

HRMP-SMA(R)J

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA PLUG TO JACK-RP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HRMP-SMA(R)J

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA PLUG TO JACK-RP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRMP-SMA(R)J

Adapter Series	SMA to RP-SMA
Adapter Type	Plug to Jack
Body Finish	Gold; Passivated
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

HRMP Series

Part	Adapter Type	Conversion Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Style	Body Material	Frequency - Max [Max]	Center Contact Plating	Dielectric Material	Convert From (Adapter End)	Mating Cycles	Center Gender	Adapter Series	Body Finish	Convert To (Adapter End)	Impedance	Fastening Type
Hirose Electric USA, Inc. HRMP-S.FL2-FHSB-200RS
Hirose Electric USA, Inc. HRMP-N.FL-04N1-A-300RS
Hirose Electric USA, Inc. HRMP-SMA(R)J	Plug to Jack	Between Series	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper Brass	Straight	Stainless Steel	26.5 GHz	Gold	Polytetrafluoroethylene (PTFE)	SMA Plug Male Pin	1000	Male to Male	SMA to RP-SMA	Gold; Passivated	Male Pin RP-SMA Jack	50 Ohms
Hirose Electric USA, Inc. HRMP-SMA(R)P	Plug to Plug	Between Series	Free Hanging (In-Line)	85 °C	-40 °C	Brass	Straight	Stainless Steel	26.5 GHz	Gold	Polytetrafluoroethylene (PTFE)	SMA Plug Male Pin	1000		SMA to RP-SMA	Gold; Passivated	Female Socket RP-SMA Plug	50 Ohms
Hirose Electric USA, Inc. HRMP-POBJ
Hirose Electric USA, Inc. HRMP-SMPP-18G	Plug to Plug	Between Series	Free Hanging (In-Line)	125 °C	-55 °C	Beryllium Copper	Straight	Stainless Steel	18 GHz	Gold	Polytetrafluoroethylene (PTFE)	SMP Plug Male Pin		Male to Male	SMA to SMP		Male Pin SMA Plug	50 Ohms	Snap-On Threaded
Hirose Electric USA, Inc. HRMP-U.FLJ	Plug to Jack	Between Series	Free Hanging (In-Line)			Brass	Straight	Stainless Steel	5 GHz	Gold	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	500	Male to Male	SMA to U.FL (UMCC)	Nickel; Passivated	Male Pin U.FL (UMCC) Jack	50 Ohms	Snap-On Threaded
Hirose Electric USA, Inc. HRMP-POD1J(40)	Plug to Jack	Between Series	Free Hanging (In-Line)	85 °C	-30 ░C	Beryllium Copper	Straight	Brass	3 GHz	Gold	Polytetrafluoroethylene (PTFE)	POD1 Jack Female Socket	250		SMA to POD1	Nickel	Male Pin SMA Plug	50 Ohms	Snap-On Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.61
		20	$ 40.02
		40	$ 37.20
		100	$ 35.15
		260	$ 34.12

Description

General part information

HRMP Series

Adapter Coaxial Connector SMA Plug, Male Pin To RP-SMA Jack, Male Pin 50 Ohms
