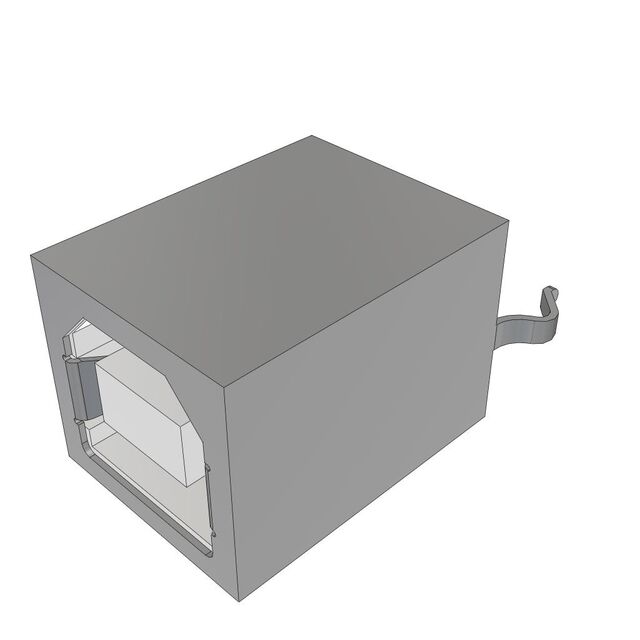

USB-B-S-S-W-VT-R

Active

Samtec Inc.

CONN USB 2.0 TYPE B RCP 4 POS 2.5MM SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

USB-B-S-S-W-VT-R

Active

Samtec Inc.

CONN USB 2.0 TYPE B RCP 4 POS 2.5MM SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	USB-B-S-S-W-VT-R

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Phosphor Bronze
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB-B Series

USB Connectors USB 2.0 Interface, Type A

Part	Mounting Feature	Mounting Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Connector Type	Shell/Shielding Material	Contact Finish	Features	Mating Cycles	Termination	Number of Contacts [custom]	Insulation Color	Specifications	Material Flammability Rating	Gender	Shielding
Samtec Inc. USB-B-S-F-B-SM-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide Solder Retention	1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-W-VT-R	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-A (USB TYPE-A)	Phosphor Bronze	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle	Shielded
Samtec Inc. USB-B-S-S-W-SM-R-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide Solder Retention	1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-W-TH	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-B-TH	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-W-SM-R-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B		Gold		1500	Solder	4	White	USB 2.0		Receptacle	Shielded
Samtec Inc. USB-B-S-F-W-SM-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide	1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-B-TH-TR	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-W-VT	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-B		Gold		1500	Solder	4	White	USB 2.0		Receptacle	Shielded
Samtec Inc. USB-B-S-S-B-VT	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-A (USB TYPE-A)	Phosphor Bronze	Gold		1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.53
		50	$ 2.07
		100	$ 1.76
		500	$ 1.56
		1000	$ 1.22
		2000	$ 1.11
Digikey	Tray	1	$ 2.53

Description

General part information

USB-B Series

USB Connectors USB 2.0 Interface, Type A

Documents

Technical documentation and resources
