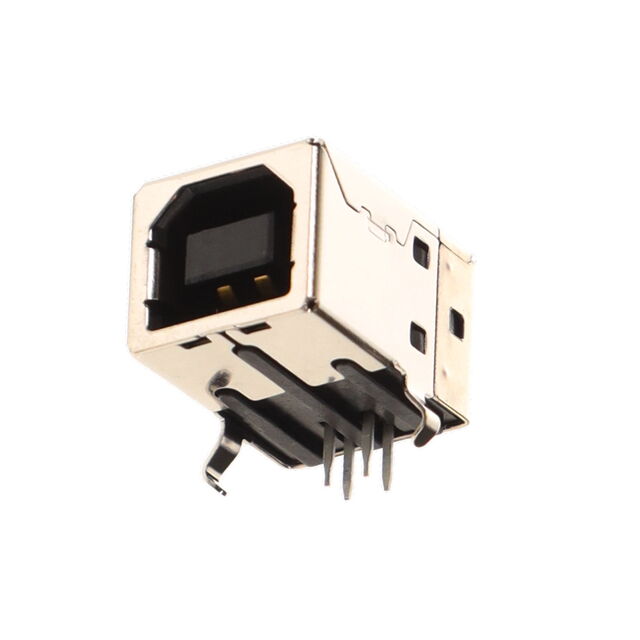

USB-B-S-S-B-TH-TR

Active

Samtec Inc.

USB 2.0 INTERFACE, TYPE A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	USB-B-S-S-B-TH-TR

Connector Type	USB-B
Contact Finish	Gold
Gender	Receptacle
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Steel
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB-B Series

USB Connectors USB 2.0 Interface, Type A

Part	Mounting Feature	Mounting Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Connector Type	Shell/Shielding Material	Contact Finish	Features	Mating Cycles	Termination	Number of Contacts [custom]	Insulation Color	Specifications	Material Flammability Rating	Gender	Shielding
Samtec Inc. USB-B-S-F-B-SM-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide Solder Retention	1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-W-VT-R	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-A (USB TYPE-A)	Phosphor Bronze	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle	Shielded
Samtec Inc. USB-B-S-S-W-SM-R-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide Solder Retention	1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-W-TH	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-B-TH	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-W-SM-R-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B		Gold		1500	Solder	4	White	USB 2.0		Receptacle	Shielded
Samtec Inc. USB-B-S-F-W-SM-TR	Horizontal	Surface Mount Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold	Board Guide	1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-S-B-TH-TR	Horizontal	Through Hole Right Angle	1	85 °C	-50 °C	30 VAC	USB-B	Steel	Gold		1500	Solder	4	White	USB 2.0	UL94 V-0	Receptacle
Samtec Inc. USB-B-S-F-W-VT	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-B		Gold		1500	Solder	4	White	USB 2.0		Receptacle	Shielded
Samtec Inc. USB-B-S-S-B-VT	Vertical	Through Hole	1	85 °C	-50 °C	30 VAC	USB-A (USB TYPE-A)	Phosphor Bronze	Gold		1500	Solder	4	Black	USB 2.0	UL94 V-0	Receptacle	Shielded
