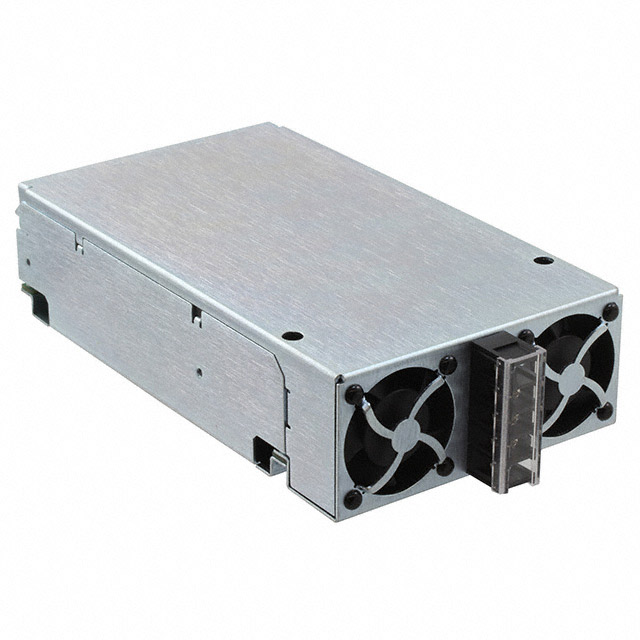

EMH350PD21-EF

Obsolete

XP POWER

AC/DC CONVERTER 12V 24V 350W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEMH Series UL Certificate Datasheet +2

EMH350PD21-EF

Obsolete

XP POWER

AC/DC CONVERTER 12V 24V 350W

Deep-Dive with AI

DocumentsEMH Series UL Certificate Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EMH350PD21-EF

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, TUV, UL
Current - Output 1	16.5 A
Current - Output 2	8.3 A
Efficiency	87 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	350 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	44.5 mm
Size / Dimension [z]	1.75 "
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	275 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V
Voltage - Output 2	24 V

EMH350 Series

Part	Current - Output 2	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Approval Agency	Type	Efficiency	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Voltage - Output 2	Features	Voltage - Output 1
XP POWER EMH350PD22-U	5.5 A	ITE (Commercial) Medical	350 W	1.57 "	6 in	101.6 mm	4 "	39.8 mm	152.4 mm	4000 V	2	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	36 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PD23-EF	4.2 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	48 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS18		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	19.5 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	18 V
XP POWER EMH350PD22-EF	5.5 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	36 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS24		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	14.6 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	24 V
XP POWER EMH350PS12-01		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	29.2 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PD21-EF	8.3 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	24 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS48		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	7.3 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	48 V
XP POWER EMH350PS12		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	29.2 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS18-01		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	19.5 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 423.86
		5	$ 411.14
		10	$ 398.43
		25	$ 381.47
