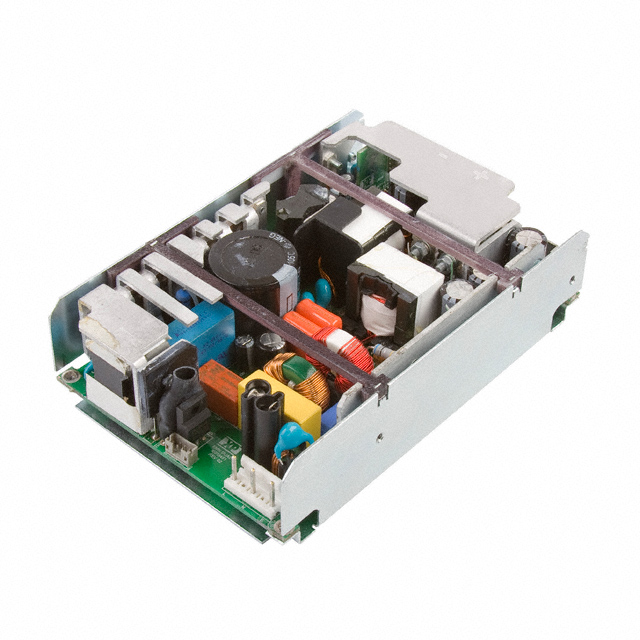

EMH350PD22-U

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 2 OUTPUT, 354W @ 16CFM, 80V AC TO 275V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEMH Series UL Certificate EMH Series TUV Certificate +4

EMH350PD22-U

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 2 OUTPUT, 354W @ 16CFM, 80V AC TO 275V AC

Deep-Dive with AI

DocumentsEMH Series UL Certificate EMH Series TUV Certificate +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EMH350PD22-U

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, TUV, UL
Current - Output 1	16.5 A
Current - Output 2	5.5 A
Efficiency	87 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	350 W
Size / Dimension [x]	6 in
Size / Dimension [x]	152.4 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.8 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	275 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V
Voltage - Output 2	36 V

EMH350 Series

Part	Current - Output 2	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Approval Agency	Type	Efficiency	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Voltage - Output 2	Features	Voltage - Output 1
XP POWER EMH350PD22-U	5.5 A	ITE (Commercial) Medical	350 W	1.57 "	6 in	101.6 mm	4 "	39.8 mm	152.4 mm	4000 V	2	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	36 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PD23-EF	4.2 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	48 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS18		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	19.5 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	18 V
XP POWER EMH350PD22-EF	5.5 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	36 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS24		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	14.6 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	24 V
XP POWER EMH350PS12-01		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	29.2 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PD21-EF	8.3 A	ITE (Commercial) Medical	350 W	1.75 "	7 "	101.6 mm	4 "	44.5 mm	177.8 mm	4000 V	2	70 °C	CB CE TUV UL	Enclosed	87 %	Chassis Mount	16.5 A	80 VAC	275 VAC	62368-1	24 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS48		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	7.3 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	48 V
XP POWER EMH350PS12		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	29.2 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V
XP POWER EMH350PS18-01		ITE (Commercial) Medical	350 W	1.43 in	5 in	76.2 mm	3 "	36.3 mm	127 mm	4000 V	1	70 °C	CB CE TUV UL	Open Frame	87 %	Chassis Mount	19.5 A	80 VAC	275 VAC	62368-1		Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 335.44
Newark	Each	10	$ 350.35
		25	$ 335.44
		100	$ 313.08

Description

General part information

EMH350 Series

The EMH350 Dual Output series provides two high current outputs in a industry standard 6" x 4" footprint. Available both in U channel and integrally cooled end fan versions the EMH dual series can be fitted into 1U and configured to provide single outputs upto 120VDC. All models feature two isolated outputs, plus and additional 12V/0.6A fan supply and 5V/2A standby supply complimented with a range of optional analogue, digital and PMBus signals and controls. With safety approvals that cover both IEC60950 (IT) and IEC60601 BF (Medical) the EMH350 dual series is suitable for a wide range of industrial and medical applications including patient contact.
