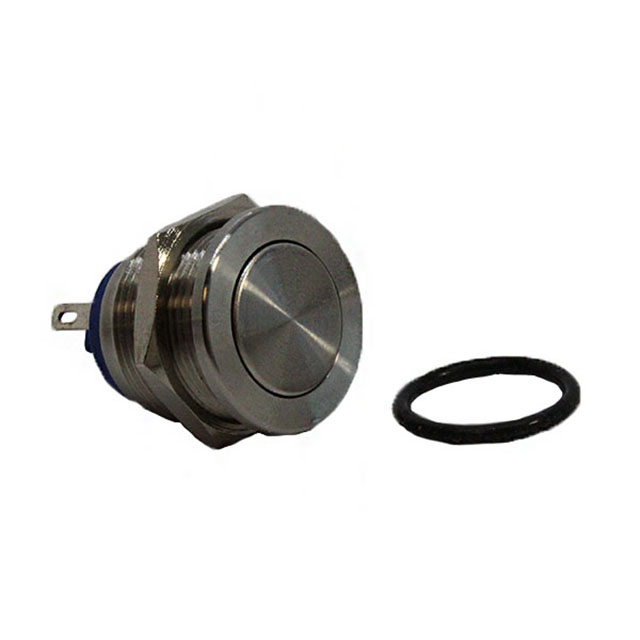

AH1NASX

Active

CIT Relay and Switch

SWITCH PB DPST-NO/NC 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AH1NASX

Active

CIT Relay and Switch

SWITCH PB DPST-NO/NC 1A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AH1NASX

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Electrical Life	50000 Cycles
Features	Stainless Steel 316
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

AH1N Series

Part	Mounting Type	Voltage Rating - DC	Actuator Type	Termination Style	Termination Style	Termination Style	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Type	Electrical Life	Circuit	Features	Switch Function	Actuator Marking	Illumination Type, Color	Illumination Voltage (Nominal)
CIT Relay and Switch AH1NASX	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking
CIT Relay and Switch AH1NMRSX	Panel Mount Front	24 V	Button Mushroom Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Red	19 mm	Anti-Vandal	50000 Cycles	SPST-NO + SPST-NC	Stainless Steel 316	Off-Mom On-Mom	No Marking
CIT Relay and Switch AH1NCBRGN	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Black	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	Green/Red LED
CIT Relay and Switch AH1NBSRN	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	LED Red
CIT Relay and Switch AH1NBSRG24	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	Green/Red LED	24 V
CIT Relay and Switch AH1NBSG12	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	Green LED	12 VDC
CIT Relay and Switch AH1NGSRN	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	LED Red
CIT Relay and Switch AH1NBSR24	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	LED Red	24 V
CIT Relay and Switch AH1NBSBN	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Silver	19 mm	Anti-Vandal Illuminated	50000 Cycles	DPST-NO/NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	Blue LED
CIT Relay and Switch AH1NBBRN	Panel Mount Front	24 V	Button Flush Round	0.11 in	Quick Connect Solder	2.8 mm	125 V	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Black	19 mm	Anti-Vandal Illuminated	50000 Cycles	SPST-NO + SPST-NC	Stainless Steel 316	Off-Mom On-Mom	No Marking	LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 13.68

Description

General part information

AH1N Series

Pushbutton Switch DPST-NO/NC Anti-Vandal Panel Mount, Front
