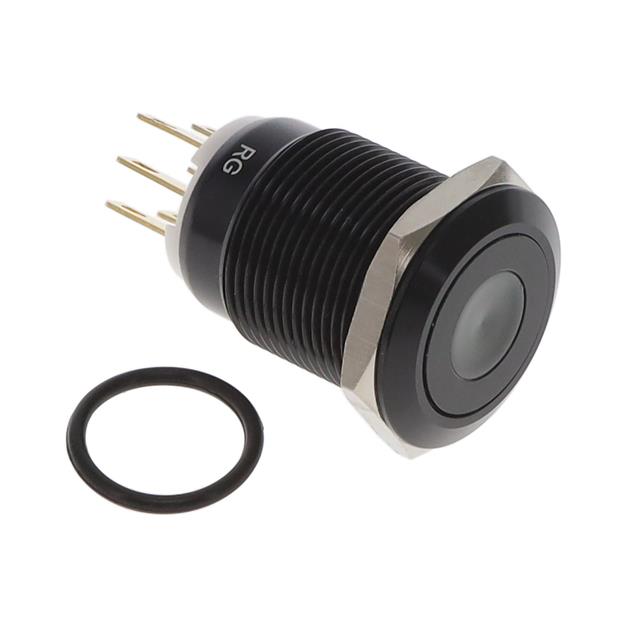

AH1NCBRGN
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AH1NCBRGN
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AH1NCBRGN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Black |
| Electrical Life | 50000 Cycles |
| Features | Stainless Steel 316 |
| Illumination Type, Color | Green/Red, LED |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.83 | |
| 10 | $ 18.91 | |||
| 25 | $ 18.06 | |||
| 40 | $ 17.11 | |||
| 80 | $ 16.47 | |||
| 240 | $ 15.41 | |||
| 440 | $ 13.15 | |||
Description
General part information
AH1N Series
Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
