NME0505DC

Active

Murata Power Solutions Inc.

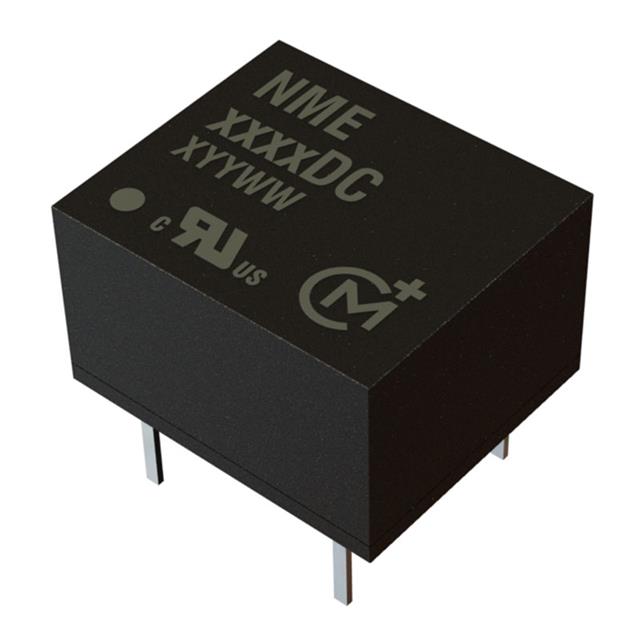

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

NME0505DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NME0505DC

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	69 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Package / Case	4 Lead
Size / Dimension [x]	9.9 mm
Size / Dimension [x]	0.39 "
Size / Dimension [y]	0.45 in
Size / Dimension [y]	11.4 mm
Size / Dimension [z]	6.9 mm
Size / Dimension [z]	0.27 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	5 V

NME05 Series

Part	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Package / Case	Package / Case	Mounting Type	Features
Murata Power Solutions Inc. NME0505DC	4.5 V	69 %	200 mA	5 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	1000 V	8-DIP Module	4 Lead	Through Hole
Murata Power Solutions Inc. NME0505DPC	4.5 V	77 %	200 mA	5 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	11.6 mm	0.39 "	0.46 in	6.9 mm	9.9 mm	0.27 "	1000 V	7-DIP Module	4 Lead	Through Hole	SCP
Murata Power Solutions Inc. NME0509SC	4.5 V	77 %		9 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1							1000 V	4-SIP Module		Through Hole
Murata Power Solutions Inc. NME0512DC	4.5 V	78 %	83 mA	12 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	1000 V	8-DIP Module	4 Lead	Through Hole
Murata Power Solutions Inc. NME0512SC	4.5 V	78 %	83 mA	12 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1							1000 V	4-SIP Module		Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.08
		5	$ 5.05
		10	$ 5.02
		25	$ 4.96
		50	$ 4.84
		100	$ 4.60
		250	$ 4.30
		500	$ 4.01
		1000	$ 3.76
Newark	Each	25	$ 5.47
		50	$ 5.35
		100	$ 5.10

Description

General part information

NME05 Series

The NME0505DC is a 1-output board-mount Isolated DC/DC Converter, particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees start-up from -40°C and full 1W output at 85°C.
