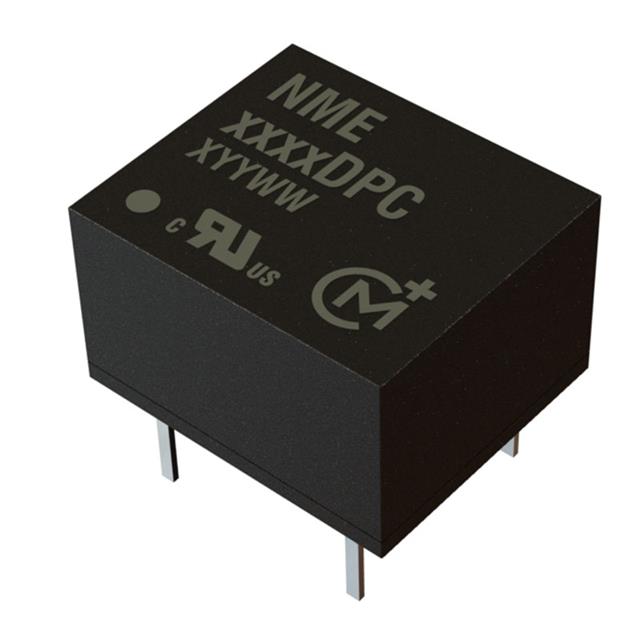

NME0505DPC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Package / Case	Package / Case	Mounting Type	Features
Murata Power Solutions Inc. NME0505DC	4.5 V	69 %	200 mA	5 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	1000 V	8-DIP Module	4 Lead	Through Hole
Murata Power Solutions Inc. NME0505DPC	4.5 V	77 %	200 mA	5 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	11.6 mm	0.39 "	0.46 in	6.9 mm	9.9 mm	0.27 "	1000 V	7-DIP Module	4 Lead	Through Hole	SCP
Murata Power Solutions Inc. NME0509SC	4.5 V	77 %		9 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1							1000 V	4-SIP Module		Through Hole
Murata Power Solutions Inc. NME0512DC	4.5 V	78 %	83 mA	12 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	1000 V	8-DIP Module	4 Lead	Through Hole
Murata Power Solutions Inc. NME0512SC	4.5 V	78 %	83 mA	12 V	Isolated Module	5.5 V	85 °C	-40 °C	ITE (Commercial)	1							1000 V	4-SIP Module		Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
