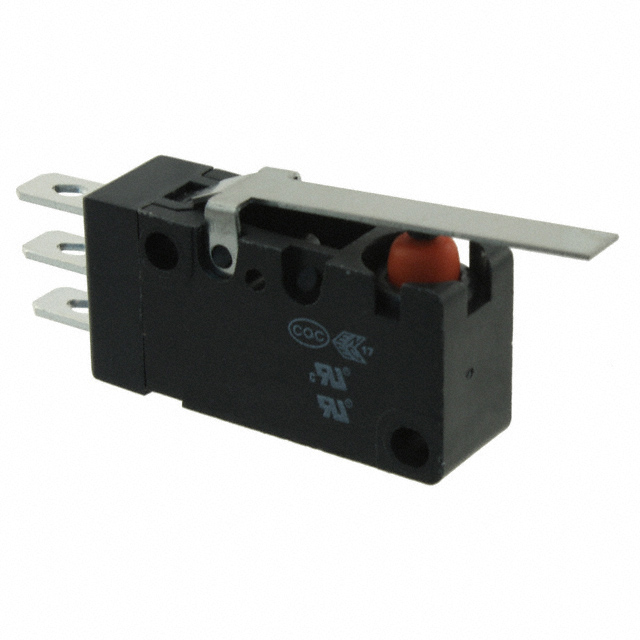

V15W11DZ200A02-AW1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V15W11DZ200A02-AW1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15W11DZ200A02-AW1

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.047 in
Differential Travel	1.2 mm
Electrical Life	10000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	120 gf
Operating Position	15.3 mm
Operating Position	0.602 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.051 in
Overtravel	1.3 mm
Pretravel	3.2 mm
Pretravel	0.125 in
Release Force	10 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	48 V

V15W1 Series

Part	Mechanical Life	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Differential Travel	Differential Travel	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Operating Position	Operating Position	Operating Force	Overtravel	Overtravel	Voltage Rating - AC	Circuit	Pretravel	Pretravel	Mounting Type	Release Force	Pretravel	Ingress Protection
Honeywell Sensing and Productivity Solutions V15W11DZ200A05-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Roller	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.812 in	20.6 mm	240 gf	0.76 mm	0.03 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V15W11-DZ200A04-W2	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Simulated Roller	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.73 in	18.5 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	20 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11-DZ200-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.579 in	14.7 mm	200 gf	0.76 mm	0.03 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount	50 gf
Honeywell Sensing and Productivity Solutions V15W11-DZ200-W3	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	10 A 500 mA	125 VDC	0.579 in	14.7 mm	200 gf	0.79 mm	0.031 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount	50 gf
Honeywell Sensing and Productivity Solutions V15W11DZ200A02-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	100 mA	48 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11-DZ200A02-W2	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11EC025B01KAW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.602 "	15.3 mm		0.79 mm	0.031 in	125 V	SPST-NC	0.063 in	1.6 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V15W11-EP015-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	Off-Mom	100 mA	48 V	0.579 in	14.7 mm	15 gf	0.76 mm	0.03 in	125 V	SPST-NO	0.063 in	1.6 mm	Chassis Mount	3 gf
Honeywell Sensing and Productivity Solutions V15W11WP015A05-KW1	1000000 Cycles	Wire Leads	Lever Roller	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	Off-Mom	100 mA	48 V	0.812 in	20.6 mm	18 gf	0.79 mm	0.031 in	125 V	SPST-NO	0.063 in	1.6 mm	Chassis Mount	3 gf		IP67 - Dust Tight Waterproof
Honeywell Sensing and Productivity Solutions V15W11-WZ200A02-W2	1000000 Cycles	Wire Leads	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V15W1 Series

Switch SPDT Chassis Mount
