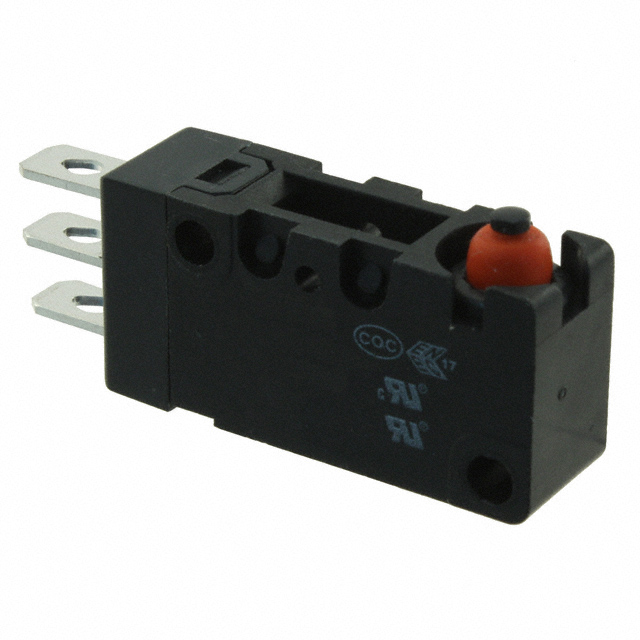

V15W11-DZ200-AW1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV15W Series Datasheet V15W Installation Instructions +1

V15W11-DZ200-AW1

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsV15W Series Datasheet V15W Installation Instructions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15W11-DZ200-AW1

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	10000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	200 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	0.063 in
Pretravel	1.6 mm
Release Force	50 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	48 V

V15W1 Series

Part	Mechanical Life	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Differential Travel	Differential Travel	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Operating Position	Operating Position	Operating Force	Overtravel	Overtravel	Voltage Rating - AC	Circuit	Pretravel	Pretravel	Mounting Type	Release Force	Pretravel	Ingress Protection
Honeywell Sensing and Productivity Solutions V15W11DZ200A05-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Roller	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.812 in	20.6 mm	240 gf	0.76 mm	0.03 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V15W11-DZ200A04-W2	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Simulated Roller	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.73 in	18.5 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	20 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11-DZ200-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.579 in	14.7 mm	200 gf	0.76 mm	0.03 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount	50 gf
Honeywell Sensing and Productivity Solutions V15W11-DZ200-W3	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	10 A 500 mA	125 VDC	0.579 in	14.7 mm	200 gf	0.79 mm	0.031 in	125 V	SPDT	0.063 in	1.6 mm	Chassis Mount	50 gf
Honeywell Sensing and Productivity Solutions V15W11DZ200A02-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	100 mA	48 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11-DZ200A02-W2	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm
Honeywell Sensing and Productivity Solutions V15W11EC025B01KAW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Lever Straight	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	On-Mom	100 mA	48 V	0.602 "	15.3 mm		0.79 mm	0.031 in	125 V	SPST-NC	0.063 in	1.6 mm	Chassis Mount
Honeywell Sensing and Productivity Solutions V15W11-EP015-AW1	1000000 Cycles	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	Off-Mom	100 mA	48 V	0.579 in	14.7 mm	15 gf	0.76 mm	0.03 in	125 V	SPST-NO	0.063 in	1.6 mm	Chassis Mount	3 gf
Honeywell Sensing and Productivity Solutions V15W11WP015A05-KW1	1000000 Cycles	Wire Leads	Lever Roller	85 °C	-40 °C	10000 Cycles	0.016 "	0.4 mm	Off-Mom	100 mA	48 V	0.812 in	20.6 mm	18 gf	0.79 mm	0.031 in	125 V	SPST-NO	0.063 in	1.6 mm	Chassis Mount	3 gf		IP67 - Dust Tight Waterproof
Honeywell Sensing and Productivity Solutions V15W11-WZ200A02-W2	1000000 Cycles	Wire Leads	Lever Straight	85 °C	-40 °C	10000 Cycles	0.047 in	1.2 mm	On-Mom	5 A	30 V	0.602 "	15.3 mm	120 gf	1.3 mm	0.051 in	125 V	SPDT		0.125 in	Chassis Mount	10 gf	3.2 mm	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V15W1 Series

Switch SPDT Chassis Mount
