LIFCL-17-8BG256C

Active

LATTICE SEMICONDUCTOR

LATTICE CROSSLINK -NX EMBEDDED VISION BRIDGING & PROCESSING FPGA WITH 2.5G MIPI D-PHY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

LATTICE CROSSLINK -NX EMBEDDED VISION BRIDGING & PROCESSING FPGA WITH 2.5G MIPI D-PHY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LIFCL-17-8BG256C

Mounting Type	Surface Mount
Number of I/O	78
Number of LABs/CLBs	4250
Number of Logic Elements/Cells	17000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

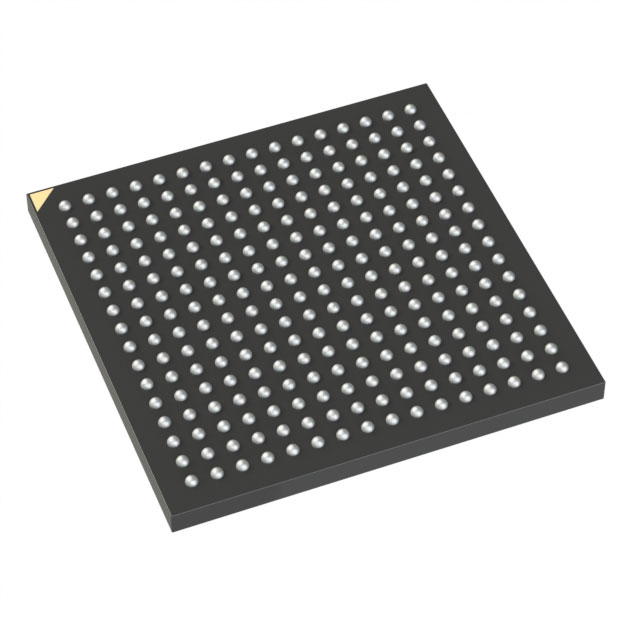

Package / Case	256-LFBGA
Supplier Device Package	256-CABGA (14x14)
Total RAM Bits	442368 bits
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

Part	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Total RAM Bits	Supplier Device Package	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]
LATTICE SEMICONDUCTOR LIFCL-17-9MG121C	4250	17000	72	0 °C	85 °C	1.05 V	0.95 V	121-VFBGA CSPBGA	442368 bits	121-CSFBGA (6x6)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-8SG72C	4250	17000	40	0 °C	85 °C	1.05 V	0.95 V	72-VFQFN Exposed Pad	442368 bits	72-QFN (10x10)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-8MG121I	4250	17000	72	-40 C	100 °C	1.05 V	0.95 V	121-VFBGA CSPBGA	442368 bits	121-CSFBGA (6x6)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-7MG121I	4250	17000	72	-40 C	100 °C	1.05 V	0.95 V	121-VFBGA CSPBGA	442368 bits	121-CSFBGA (6x6)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-8BG256C	4250	17000	78	0 °C	85 °C	1.05 V	0.95 V	256-LFBGA	442368 bits	256-CABGA (14x14)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-8UWG72C	4250	17000	40	0 °C	85 °C	1.05 V	0.95 V	72-BGA WLCSP	442368 bits	72-WLCSP	Surface Mount	4.1	3.7
LATTICE SEMICONDUCTOR LIFCL-17-7MG121C	4250	17000	72	0 °C	85 °C	1.05 V	0.95 V	121-VFBGA CSPBGA	442368 bits	121-CSFBGA (6x6)	Surface Mount
LATTICE SEMICONDUCTOR LIFCL-17-8UWG72I	4250	17000	40	-40 C	100 °C	1.05 V	0.95 V	72-BGA WLCSP	442368 bits	72-WLCSP	Surface Mount	4.1	3.7
LATTICE SEMICONDUCTOR LIFCL-17-7BG256I	4250	17000	78	-40 C	100 °C	1.05 V	0.95 V	256-LFBGA	442368 bits	256-CABGA (14x14)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CrossLink-NX™ Field Programmable Gate Array (FPGA) IC 78 442368 17000 256-LFBGA
