12052309

Active

Bopla Enclosures

CABLE GLAND 14-18.01MM PG21

Search across all available documentation for this part.

Active

Bopla Enclosures

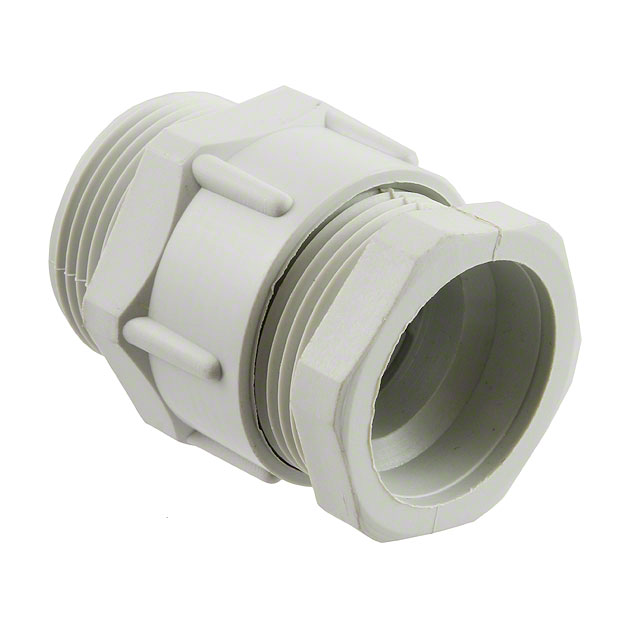

CABLE GLAND 14-18.01MM PG21

Technical Specifications

Parameters and characteristics for this part

Specification	12052309

Color	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	PG21
Type	Cable Gland

Part	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 12052609	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.236 in	6 mm	PG7	Gray	Polyamide (PA) Nylon	8 mm	0.315 in	0.157 in	4 mm
Bopla Enclosures 12052409	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C			PG29	Gray	Polyamide (PA) Nylon	11 mm	0.433 in			0.709 in	18.01 mm	24 mm	0.945 in
Bopla Enclosures 12052009	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA) Nylon	8 mm	0.315 in			0.315 in	8 mm
Bopla Enclosures 12052309	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.709 in	18.01 mm	PG21	Gray	Polyamide (PA) Nylon	11 mm	0.433 in			0.551 in	14 mm
Bopla Enclosures 12052809	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA) Nylon	8 mm	0.315 in			0.315 in	8 mm
Bopla Enclosures 12052109	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.472 in	12 mm	PG13	Gray	Polyamide (PA) Nylon	9 mm	0.354 in			0.394 in	10 mm
Bopla Enclosures 12052909	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.472 in	12 mm	PG13	Gray	Polyamide (PA) Nylon	9 mm	0.354 in			0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG21 Gray
