12052009

Active

Bopla Enclosures

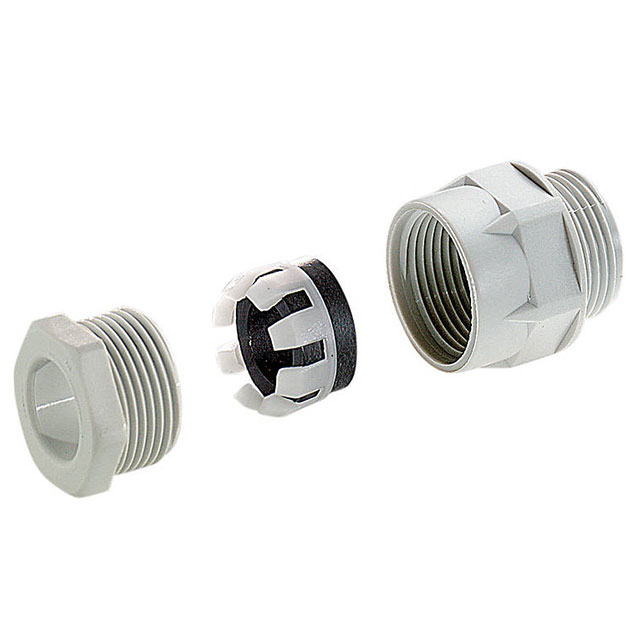

CABLE GLAND 8-10MM PG11 POLYAMID

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 8-10MM PG11 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	12052009

Color	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG11
Type	Cable Gland

Part	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 12052609	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.236 in	6 mm	PG7	Gray	Polyamide (PA) Nylon	8 mm	0.315 in	0.157 in	4 mm
Bopla Enclosures 12052409	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C			PG29	Gray	Polyamide (PA) Nylon	11 mm	0.433 in			0.709 in	18.01 mm	24 mm	0.945 in
Bopla Enclosures 12052009	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA) Nylon	8 mm	0.315 in			0.315 in	8 mm
Bopla Enclosures 12052309	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.709 in	18.01 mm	PG21	Gray	Polyamide (PA) Nylon	11 mm	0.433 in			0.551 in	14 mm
Bopla Enclosures 12052809	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA) Nylon	8 mm	0.315 in			0.315 in	8 mm
Bopla Enclosures 12052109	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-20 C	0.472 in	12 mm	PG13	Gray	Polyamide (PA) Nylon	9 mm	0.354 in			0.394 in	10 mm
Bopla Enclosures 12052909	IP65 - Dust Tight Water Resistant	Cable Gland	100 °C	-30 ░C	0.472 in	12 mm	PG13	Gray	Polyamide (PA) Nylon	9 mm	0.354 in			0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.73

General part information

Cable Gland Polyamide (PA), Nylon PG11 Gray
