Technical Specifications
Parameters and characteristics for this part

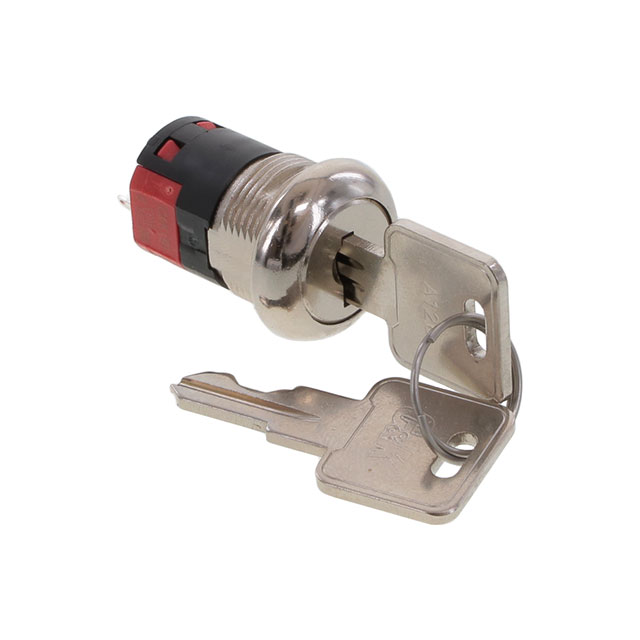

| Specification | Y100822C203NQ |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | SP3T |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 4 A |
| Depth Behind Flange | 28.83 mm |
| Electrical Life | 10000 Cycles |
| Key Removable Positions | 1 only |
| Panel Cutout Dimensions [diameter] | 19.3 mm |
| Switch Function | On-On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.21 | |
| 10 | $ 20.17 | |||
| 36 | $ 19.26 | |||
| 72 | $ 18.24 | |||
| 108 | $ 17.56 | |||
| 252 | $ 16.43 | |||
| 468 | $ 14.02 | |||
Description
General part information
Y Series Series
The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.
