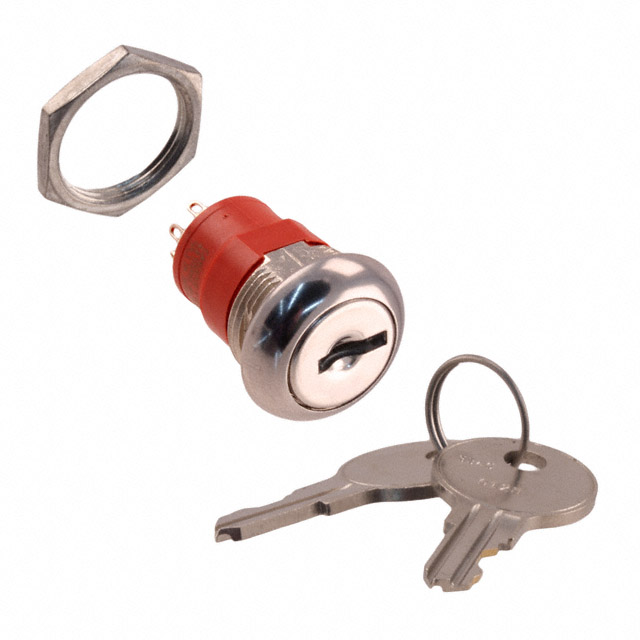

Y208122A203NQ

Active

Littelfuse/Commercial Vehicle Products

SWITCH KEYLOCK 2POS DPDT 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet y +1

Y208122A203NQ

Active

Littelfuse/Commercial Vehicle Products

SWITCH KEYLOCK 2POS DPDT 4A 125V

Deep-Dive with AI

DocumentsDatasheet y +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Y208122A203NQ

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	DPDT
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange	26.37 mm
Electrical Life	10000 Cycles
Key Removable Positions	1 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	19.3 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Y Series Series

4, 5 & 6 Tumbler Switchlock Keylock Switches Switchlocks

...

Part	Voltage Rating - DC	Angle of Throw	Panel Cutout Dimensions [diameter]	Switch Function	Circuit	Contact Finish	Voltage Rating - AC	Features	Actuator Type	Contact Material	Depth Behind Flange	Current Rating (Amps)	Number of Positions	Key Removable Positions	Termination Style	Electrical Life	Contact Timing	Operating Temperature [Min]	Operating Temperature [Max]	Depth Behind Flange [z]
Littelfuse/Commercial Vehicle Products Y101132V203NQE	28 V	90 °	19.3 mm	On-On	SPDT	Silver	125 V	Epoxy Sealed Terminals	Tubular Key	Copper	29.34 mm	4 A	2	1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y1001U2C203NGE	28 V	45 °	19.3 mm	On-On-On	SP3T	Gold	125 V	Epoxy Sealed Terminals	Flat Key	Copper	28.83 mm	4 A		1 and 3	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y101132C201NQE	28 V	90 °	19.3 mm	On-On	SPDT	Silver	125 V	Epoxy Sealed Terminals	Flat Key	Copper	28.83 mm	4 A	2	1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y201132V203NQ	28 V	90 °	19.3 mm	On-On	DPDT	Silver	125 V		Tubular Key	Copper	29.34 mm	4 A	2	1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y100822C203NGE	28 V	45 °	19.3 mm	On-On-On	SP3T	Gold	125 V	Epoxy Sealed Terminals	Flat Key	Copper	28.83 mm	4 A		1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y101132C203NGE	28 V	90 °	19.3 mm	On-On	SPDT	Silver	125 V	Epoxy Sealed Terminals	Flat Key	Copper	28.83 mm	4 A	2	1 only	Solder Lug	10000 Cycles	Not Specified	-30 ░C	85 °C
Littelfuse/Commercial Vehicle Products Y100822C203NQ	28 V	45 °	19.3 mm	On-On-On	SP3T	Silver	125 V		Flat Key	Copper	28.83 mm	4 A		1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y1417U2C2WCNQ	28 V	90 °	19.3 mm	On-On-On	SP3T	Silver	125 V		Flat Key	Copper		4 A		All	Wire Leads	10000 Cycles	Not Specified			23.14 mm
Littelfuse/Commercial Vehicle Products Y208122A203NQ	28 V	45 °	19.3 mm	On-Mom	DPDT	Silver	125 V		Flat Key	Copper	26.37 mm	4 A	2	1 only	Solder Lug	10000 Cycles	Not Specified
Littelfuse/Commercial Vehicle Products Y1011U2V203NQ	28 V	90 °	19.3 mm	On-On	SPDT	Silver	125 V		Tubular Key	Copper	29.34 mm	4 A	2	All	Solder Lug	10000 Cycles	Not Specified

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.01
		10	$ 14.54
		36	$ 14.38

Description

General part information

Y Series Series

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.

Documents

Technical documentation and resources

Datasheet

y

Datasheet

switchlock
