SCBS-14-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK THR STUD 7/8"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK THR STUD 7/8"

Technical Specifications

Parameters and characteristics for this part

Specification	SCBS-14-01

Between Board Height	0.875 in
Between Board Height	22.23 mm
Between Board Height	0.875 in
Features	8-32 Thread
Holding Type	Snap Lock
Length - Overall [x]	1.528 in
Length - Overall [x]	38.8 mm
Material	Nylon
Mounting Panel Thickness	0.25 "
Mounting Panel Thickness	6.35 mm
Mounting Panel Thickness	0.25 "
Mounting Type	Threaded Stud
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Between Board Height	Material	Mounting Type	Features	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter	Support Hole Diameter [diameter]
Essentra Access Solutions SCBS-8-01	29.3 mm	1.154 in	0.5 in	12.7 mm	0.5 in	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-22.5-01	52.3 mm	2.059 in	1.406 in	35.71 mm		Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-12-01	35.7 mm	1.406 in	0.75 in	19.05 mm	0.75 in	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-12-19			0.75 in	19.05 mm	0.75 in	Nylon Flame Retardant			0.156 in	3.96 mm	Arrowhead Snap Lock	0.25 "	6.4 mm	0.25 "	0.0625 "	0.062 "	1.57 mm	8-32 Thread	0.15625 in
Essentra Access Solutions SCBS-14-01	38.8 mm	1.528 in	0.875 in	0.875 in	22.23 mm	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-16-01	42 mm	1.654 in	1 in	25.4 mm		Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

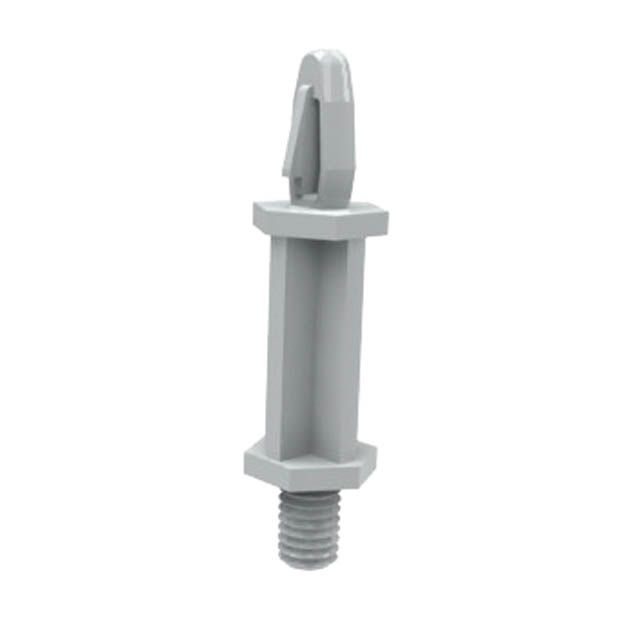

Board Support Snap Lock / Threaded Stud Nylon 0.875" (22.23mm) 7/8"
