SCBS-16-01

Active

Essentra Access Solutions

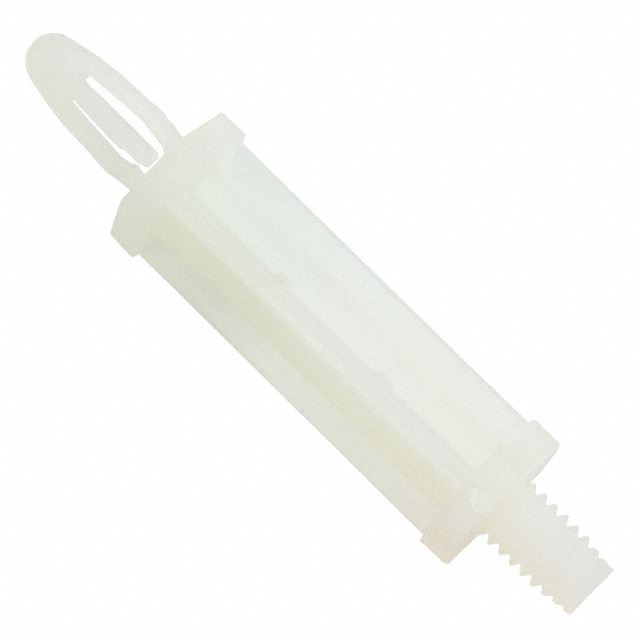

BRD SPT SNAP LOCK THR STUD 1"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK THR STUD 1"

Technical Specifications

Parameters and characteristics for this part

Specification	SCBS-16-01

Between Board Height	1 in
Between Board Height	25.4 mm
Features	8-32 Thread
Holding Type	Snap Lock
Length - Overall [x]	1.654 in
Length - Overall [x]	42 mm
Material	Nylon
Mounting Panel Thickness	0.25 "
Mounting Panel Thickness	6.35 mm
Mounting Panel Thickness	0.25 "
Mounting Type	Threaded Stud
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Between Board Height	Material	Mounting Type	Features	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter	Support Hole Diameter [diameter]
Essentra Access Solutions SCBS-8-01	29.3 mm	1.154 in	0.5 in	12.7 mm	0.5 in	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-22.5-01	52.3 mm	2.059 in	1.406 in	35.71 mm		Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-12-01	35.7 mm	1.406 in	0.75 in	19.05 mm	0.75 in	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-12-19			0.75 in	19.05 mm	0.75 in	Nylon Flame Retardant			0.156 in	3.96 mm	Arrowhead Snap Lock	0.25 "	6.4 mm	0.25 "	0.0625 "	0.062 "	1.57 mm	8-32 Thread	0.15625 in
Essentra Access Solutions SCBS-14-01	38.8 mm	1.528 in	0.875 in	0.875 in	22.23 mm	Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions SCBS-16-01	42 mm	1.654 in	1 in	25.4 mm		Nylon	Threaded Stud	8-32 Thread	0.157 "	3.99 mm	Snap Lock	0.25 "	6.35 mm	0.25 "	0.0625 "	0.062 "	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Threaded Stud Nylon 1.000" (25.40mm) 1"
