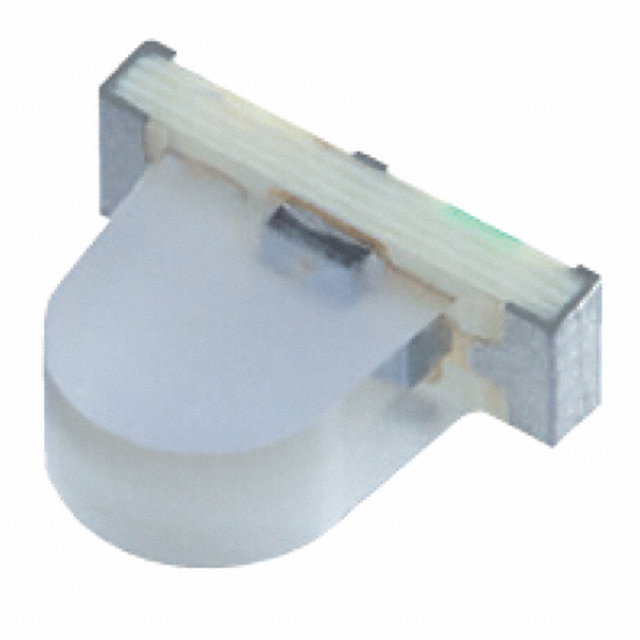

XZRNI56W-1

Active

SunLED

SENSOR PHOTO 940NM SIDE VIEW SMD

Search across all available documentation for this part.

Active

SunLED

SENSOR PHOTO 940NM SIDE VIEW SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XZRNI56W-1

Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	3-SMD, No Lead
Power - Max [Max]	100 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Package / Case	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Mounting Type	Wavelength	Current - Dark (Id) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
SunLED XZRNI56W	2-SMD No Lead	100 mW	400 µA	Top View	85 °C	-40 °C	160 °	Surface Mount Right Angle	940 nm	100 nA	30 V
SunLED XZRNI56W-1	3-SMD No Lead	100 mW		Side View	85 °C	-40 °C		Surface Mount	940 nm	100 nA	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Side View 3-SMD, No Lead
