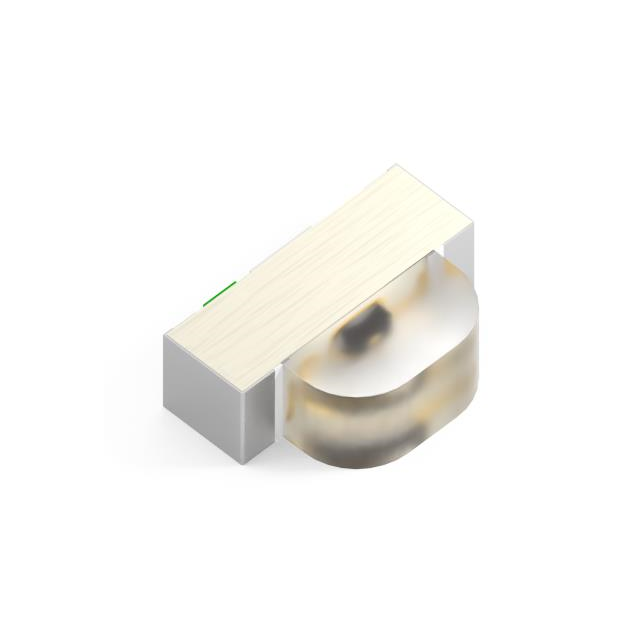

XZRNI56W

Active

SunLED

3.0X1.0MM PHOTOTRANSISTOR RIGHT

Search across all available documentation for this part.

Active

SunLED

3.0X1.0MM PHOTOTRANSISTOR RIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	XZRNI56W

Current - Collector (Ic) (Max) [Max]	400 µA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	2-SMD, No Lead
Power - Max [Max]	100 mW
Viewing Angle	160 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Package / Case	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Mounting Type	Wavelength	Current - Dark (Id) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
SunLED XZRNI56W	2-SMD No Lead	100 mW	400 µA	Top View	85 °C	-40 °C	160 °	Surface Mount Right Angle	940 nm	100 nA	30 V
SunLED XZRNI56W-1	3-SMD No Lead	100 mW		Side View	85 °C	-40 °C		Surface Mount	940 nm	100 nA	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View 2-SMD, No Lead
