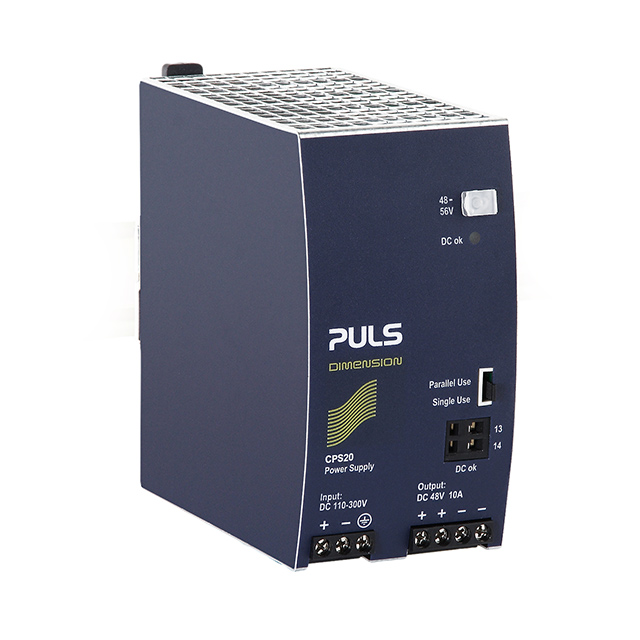

CPS20.481-D1
ActivePULS, LP
DC/DC DIN RAIL SUPPLY 48V 480W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CPS20.481-D1
ActivePULS, LP
DC/DC DIN RAIL SUPPLY 48V 480W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPS20.481-D1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, IECEx, UL, ATEX, EAC, IEC |
| Current - Output (Max) [Max] | 10 A |
| DC Voltage - Input (Max) [Max] | 360 V |
| DC Voltage - Input (Min) [Min] | 88 V |
| Efficiency | 92.8 % |
| Features | PFC, Universal Input, Load Sharing, Adjustable Output, IP20 |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 480 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 4.88 " |
| Size / Dimension [z] | 124 mm |
| Standard Number | 61010-2-201, 60950-1, 508, Class I Div 2 |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
CPS20 Series
| Part | Number of Outputs | Efficiency | Voltage - Isolation | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Applications | Power (Watts) | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Input Type | Current - Output (Max) [Max] | DC Voltage - Input (Max) [Max] | DC Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PULS, LP | 1 | 93.9 % | 3000 V | Adjustable Output Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 48 V | ABS ATEX CSA DNV GL EAC IEC IECEx UL | -25 °C | 70 °C | 508 60950-1 61010-2-201 Class I Div 2 | Hazardous Locations ITE (Commercial) | 480 W | 264 VAC | 100 VAC | AC | 10 A | ||
PULS, LP | 1 | 92.5 % | 3000 V | Adjustable Output Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 12 V | ABS ATEX CSA DNV GL EAC IEC IECEx UL | -25 °C | 70 °C | 508 60950-1 61010-2-201 Class I Div 2 | Hazardous Locations ITE (Commercial) | 360 W | 264 VAC | 85 VAC | AC | 30 A | ||
PULS, LP | 1 | 92.8 % | 3000 V | Adjustable Output IP20 Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 48 V | ATEX CSA EAC IEC IECEx UL | -25 °C | 70 °C | 508 60950-1 61010-2-201 Class I Div 2 | ITE (Commercial) | 480 W | DC | 10 A | 360 V | 88 V | ||
PULS, LP | 1 | 94 % | 3000 V | Adjustable Output Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 24 V | ABS ATEX CSA DNV GL EAC IEC IECEx UL | -25 °C | 70 °C | 508 60950-1 61010-2-201 Class I Div 2 | Hazardous Locations ITE (Commercial) | 480 W | 264 VAC | 100 VAC | AC | 20 A | ||
PULS, LP | 1 | 3000 V | Adjustable Output IP20 Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 24 V | ATEX CSA EAC IEC IECEx UL | -25 °C | 70 °C | 508 60950-1 61010-2-201 Class I Div 2 | ITE (Commercial) | 480 W | DC | 20 A | 360 V | 88 V | |||
PULS, LP | 1 | 94 % | 3000 V | Adjustable Output Conformal Coating Load Sharing PFC Universal Input | 4.88 " | 2.56 " | 65 mm | 5 in | 127 mm | 124 mm | 24 V | ABS ATEX CSA DNV GL EAC EN IEC IECEx UL | -25 °C | 70 °C | 50155 508 60950-1 61010-2-201 Class I Div 2 | Hazardous Locations ITE (Commercial) | 480 W | 240 VAC | 100 VAC | AC | 20 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 652.50 | |
Description
General part information
CPS20 Series
DC/DC DIN RAIL SUPPLY 48V 480W
