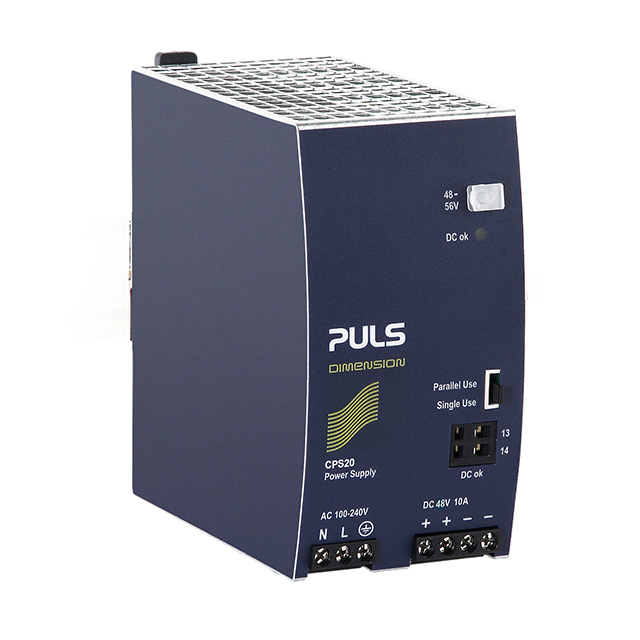

CPS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CPS20.481

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	100 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC
Current - Output (Max) [Max]	10 A
Efficiency	93.9 %
Features	Adjustable Output, Load Sharing, Universal Input, PFC
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	2.56 "
Size / Dimension [y]	65 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

CPS20 Series

Part	Number of Outputs	Efficiency	Voltage - Isolation	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Applications	Power (Watts)	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Input Type	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]
PULS, LP CPS20.481	1	93.9 %	3000 V	Adjustable Output Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	48 V	ABS ATEX CSA DNV GL EAC IEC IECEx UL	-25 °C	70 °C	508 60950-1 61010-2-201 Class I Div 2	Hazardous Locations ITE (Commercial)	480 W	264 VAC	100 VAC	AC	10 A
PULS, LP CPS20.121	1	92.5 %	3000 V	Adjustable Output Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	12 V	ABS ATEX CSA DNV GL EAC IEC IECEx UL	-25 °C	70 °C	508 60950-1 61010-2-201 Class I Div 2	Hazardous Locations ITE (Commercial)	360 W	264 VAC	85 VAC	AC	30 A
PULS, LP CPS20.481-D1	1	92.8 %	3000 V	Adjustable Output IP20 Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	48 V	ATEX CSA EAC IEC IECEx UL	-25 °C	70 °C	508 60950-1 61010-2-201 Class I Div 2	ITE (Commercial)	480 W			DC	10 A	360 V	88 V
PULS, LP CPS20.241	1	94 %	3000 V	Adjustable Output Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	24 V	ABS ATEX CSA DNV GL EAC IEC IECEx UL	-25 °C	70 °C	508 60950-1 61010-2-201 Class I Div 2	Hazardous Locations ITE (Commercial)	480 W	264 VAC	100 VAC	AC	20 A
PULS, LP CPS20.241-D1	1		3000 V	Adjustable Output IP20 Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	24 V	ATEX CSA EAC IEC IECEx UL	-25 °C	70 °C	508 60950-1 61010-2-201 Class I Div 2	ITE (Commercial)	480 W			DC	20 A	360 V	88 V
PULS, LP CPS20.241-C1	1	94 %	3000 V	Adjustable Output Conformal Coating Load Sharing PFC Universal Input	4.88 "	2.56 "	65 mm	5 in	127 mm	124 mm	24 V	ABS ATEX CSA DNV GL EAC EN IEC IECEx UL	-25 °C	70 °C	50155 508 60950-1 61010-2-201 Class I Div 2	Hazardous Locations ITE (Commercial)	480 W	240 VAC	100 VAC	AC	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 598.50

Description

General part information

CPS20 Series

AC/DC DIN RAIL SUPPLY 48V 480W

Documents

Technical documentation and resources
